Truck Tipping Hydraulic Kits
Autonomous supply of a single-acting cylinder (e.g.: dump truck).
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description

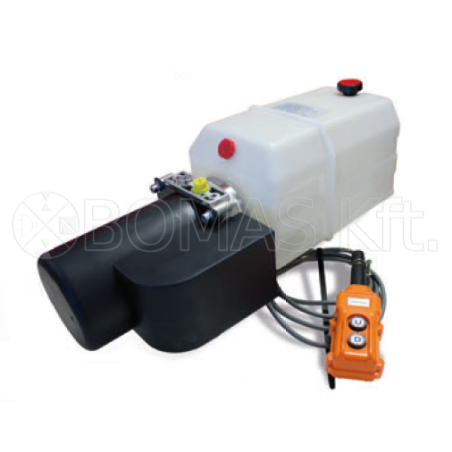

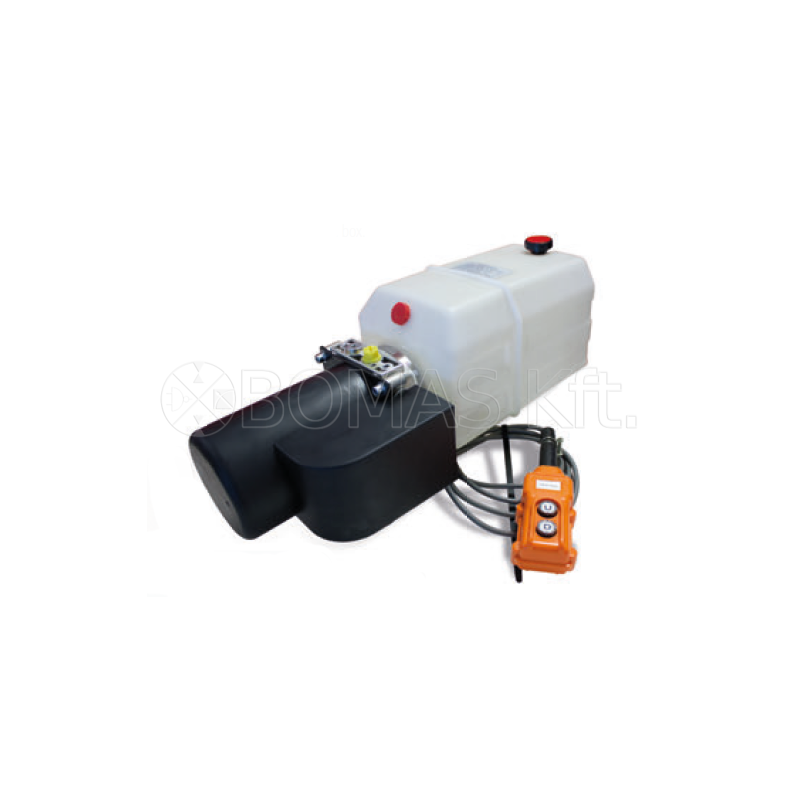

TRUCK TIPPING BODY UNITS
Applications
- For loading ramps, tailgate or dump trailer on commercial vehicle or truck.
- Hydraulic unit with DC electric motor and remote control via an external box.
- Easy and economical adaptation.
- Functions with single-acting cylinders.
Composition
A compact hydraulic unit, including:
- Electric motor delivered with wired start relay and protective cover (12 V - 1,6 kW or 24 V - 2.2 kW).
- Sheet metal mounting plate.
- 8 l translucent plastic reservoir (no corrosion, fill level is visible from the outside).
- Adjustable pressure relief valve (90 to 200 bar).
- 1.6 cm3/rev displacement pump.
- Lowering solenoid valve 12 V or 24 V, 3/8"BSP outlet.
- Lift / lower control box.
| Voltage | Reference with protective hood |
| 12 | BGH10RDC12CLH |
| 24 | BGH10RDC24CLH |
