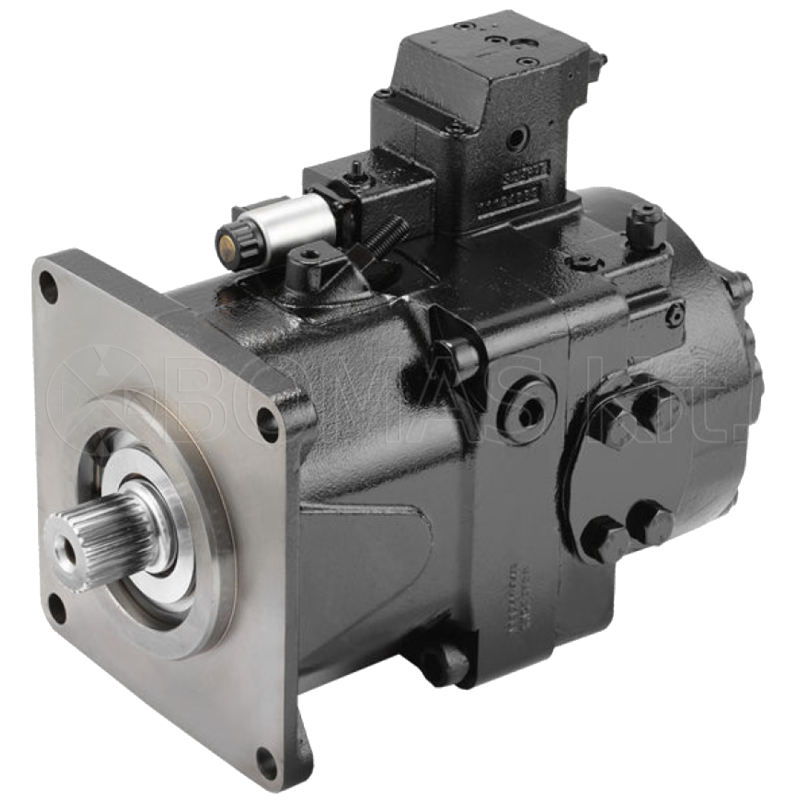

New, high power product line in the family of Danfoss open circuit axial piston pumps.
Properties:
- Many different control options (PC, LS, mechanical torque control, electric control)
- Up to 350 bar nominal pressure
- 4 different sizes from 130 to 260 cm3/rev.
- High rated power enabled by the integrated impeller pump option. High flow rates are achievable.
- Different shaft options
- Auxiliary drive flanges for direct mounting of additional pumps
- Different hydraulic port options
- Perfect pump choice for a high-flow Danfoss PVG 128/256 valve group
Application examples:
- Large cranes
- High power construction or forestry machines' work functions
- Oil & Gas, mining machinery, power packs of drilling rigs
- Off-shore marine applications
- etc.
Danfoss Technical Information
| Pump frame size | D1P065 | D1P130 | D1P145 | D1P193 | D1P260 | ||||
|---|---|---|---|---|---|---|---|---|---|
| SAE mounting flange | C 2/4 | D4 | E4 | ||||||
| Impeller pump | no | yes | no | yes | no | yes | yes | ||
| Capacity (flow) [cm3/rev] |
65 | 130 | 145 | 193 | 260 | ||||
| Theoretical flow on rated speed [l/min] |
165 | 273 | 325 | 319 | 363 | 483 | 598 | ||
| Rated speed [1/min] |
2550 | 2200 | 2500 | 2200 | 2500 | 2500 | 2500 | ||
| Minimal speed [1/min] |
500 | ||||||||
| Nominal pressure [bar] |
350 | ||||||||
| Intermittent pressure [bar] |
400 | ||||||||
