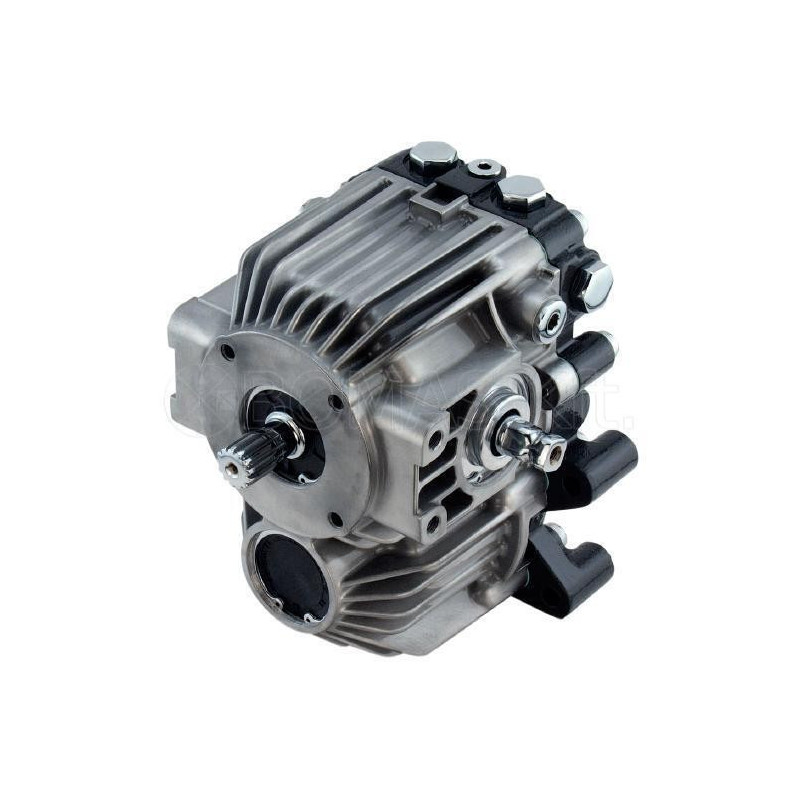

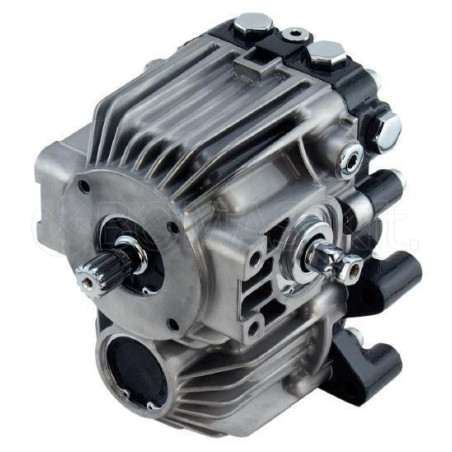

Danfoss Compact HST units

Brand Danfoss

HST in the smallest package

Don't forget to save your customization to be able to add to cart

Quantity

Available to order

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Danfoss compact HST units are currently offered in three main product series as following (with technical information behind the links):

Series, Type, Frame size	Dry Weight [kg]	Pump Displacement [cm3/rev]	Motor Displacement [cm3/rev]	Charge Pump Displacement [cm3/rev]	Max. Input Power [kW]	Maximum Output Torque (Theoretical) [Nm]	Rated Input Speed [rpm]	Rated System Pressure [bar]	Oil Reservoir	Filtration
BDU-06S	4	6	6	NA	1,1	9,8	3000	105	Integrated	Without
BDU-10S	6,3	10	10	NA	3,7	23,4	3000	150	Integrated	Integrated
BDP-10L	4,6	10	-	1,9	2,2	-	3600	150	External	External
BDU-10L	6,5	10	10	2,1	3,7	23,4	3600	150	External	External
BDU-21L	10	21	21	3,0	7,4	49,2	3600	150	External	External, opt. Int.
BDU-21H	10	21	21	1,9	11,0	72,1	3600	210	External	External, opt. Int.
LDU20	14,1	20	20	External	22	96	3400	300	External	External
LDU32	?	32	32	External	?	?	?	?	?	?
3232	22	31,5	31,5	External	?	?	3200	300	External	External
4141	29,5	40,9	40,9	External	?	?	3200	300	External	External
