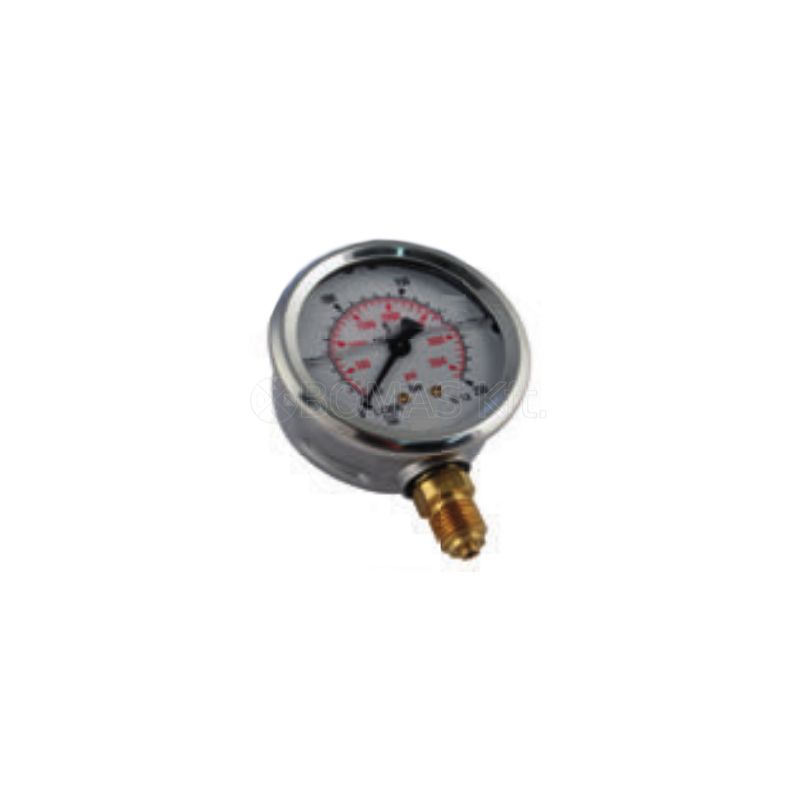

Manometers (pressure gauges)

63 and 100mm

Product customization

Don't forget to save your customization to be able to add to cart

Quantity

Available to order

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

MANOMETERS (PRESSURE GAUGES)

Specifications
- Stainless steel casing
- Glycerine-filled for needle damping in event of vibrations
- White dial with double graduated scale in bar and PSI
- Fluide temperature: 0 °C to 65 °C

Accuracy class for ⌀ 63 models: 1.6%
Accuracy class for ⌀ 100 models: 1%

Graduation [bar]	Graduation scale [bar]	Vertical connection		Rear connection
Graduation [bar]	Graduation scale [bar]	⌀ 63	⌀ 100	⌀ 63	⌀ 100
-1 - 1.5	0.1	BUC63151	BUC10015	BUC6315F1	-
0 - 2.5	0.1	BUC63251	-	-	-
0 - 6	0.1	BUC6306	-	BUC6306F	-
0 - 10	0.1	BUC6310	-	BUC6310F	BUC10010F
0 - 15	0.1	BUC6315	BUC100151	BUC6315F	BUC10015F
0 - 25	0.1	BUC6325	BUC10025	BUC6325F	BUC10025F
0 - 40	0.1	BUC6340	BUC10040	BUC6340F	BUC10040F
0 - 60	0.1	BUC6360	BUC10060	BUC6360F	BUC10060F
0 - 100	0.1	BUC63100	BUC100100	BUC63100F	BUC100100F
0 - 160	0.1	BUC63160	BUC100160	BUC63160F	BUC100160F
0 - 250	0.1	BUC63250	BUC100250	BUC63250F	BUC100250F
0 - 400	0.1	BUC63400	BUC100400	BUC63400F	BUC100400F
0 - 600	0.1	BUC63600	BUC100600	BUC63600F	BUC100600F
