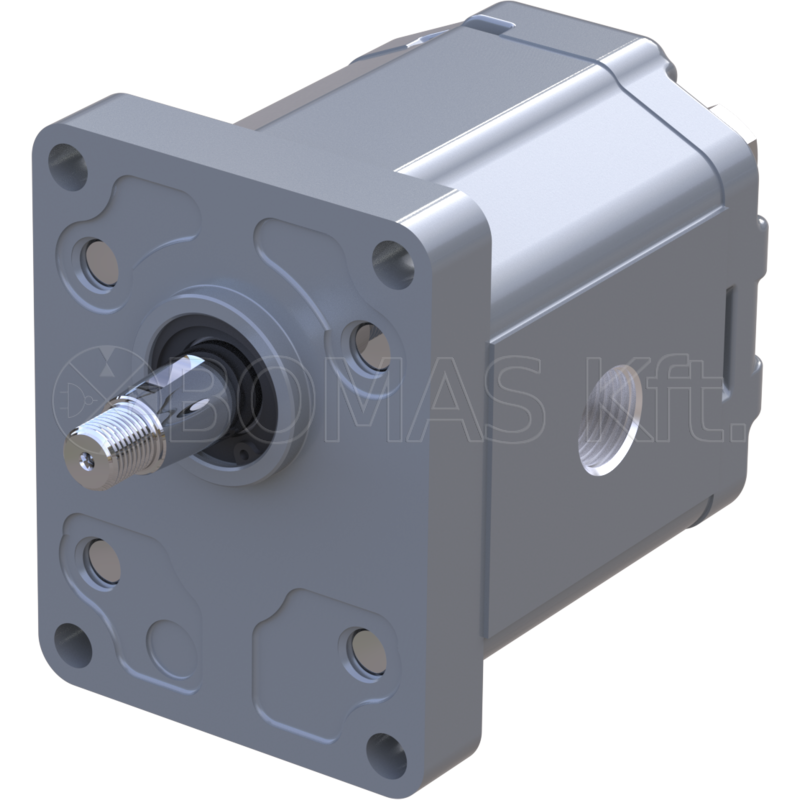

Danfoss Gear Motors, Aluminium, Group 1, 2, 3

Features and benefits

Three groups of frame sizes (Group 1, 2 and 3)

Displacements from 2.6 to 90 cm3/rev [from 0.158 to 5.49 in3/rev]

Available in uni- and bidirectional version for all the frame sizes, displacements and configurations

Rated pressure up to 250 bar [3625 psi]

Back pressure capability up to 250 bar [3625 psi]

Speeds up to 4000 min-1 (rpm) for Group 1 and 2, and up to 2500 min-1 (rpm) for Group 3

SAE, ISO and DIN mounting flanges and shafts

Available with integrated relief valve in the Group 2 frame size and integrated anti-cavitation valve in Group 2 and Group 3 frame sizes

Model code reference:

SKM...

SNU...

SNM...
