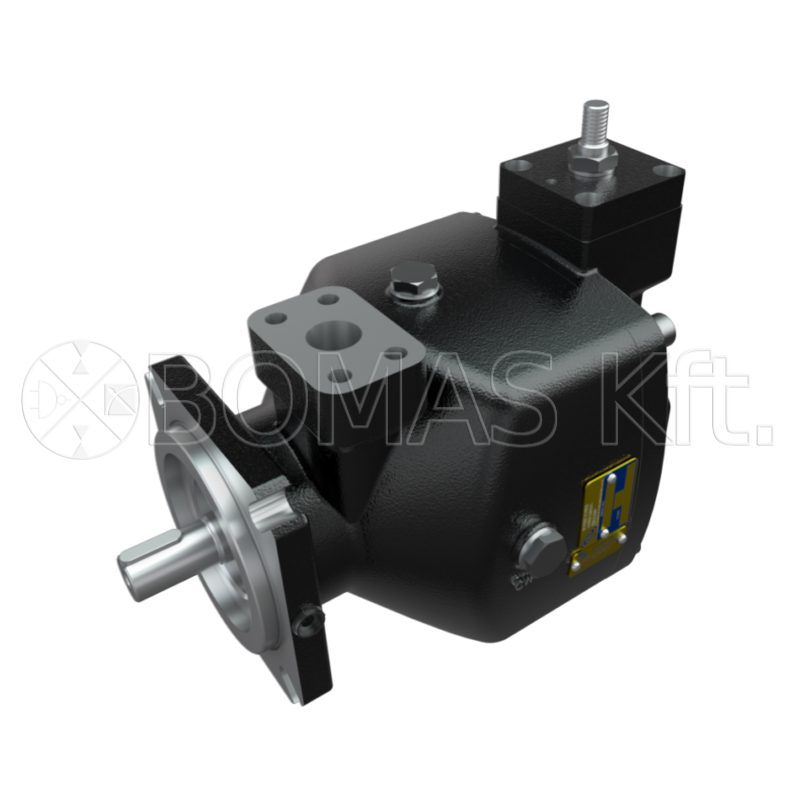

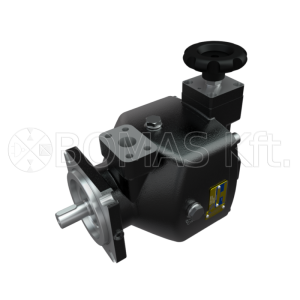

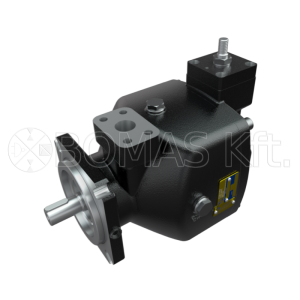

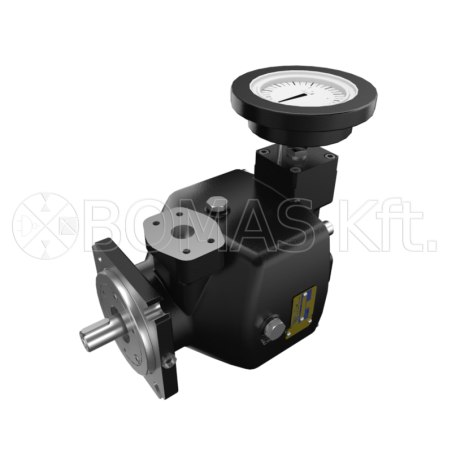

Rotary Power C Range Metering Pump
High accuracy fluid metering with precision flow control and a high-pressure capability
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
The C Range metering pumps are designed for high-precision chemical metering, offering a geometric displacement of 2-62 cc/rev. With a maximum speed of 1800 rpm and a minimum speed of 200 rpm, these ensure accurate fluid control across a wide range of applications. They handle pressures up to 210 bar for TDI and 250 bar for MDI, making them suitable for demanding, high-pressure environments.
These pumps are specifically built for the polyurethane foam industry, delivering precise metering performance with exceptional flow control and high-pressure capabilities.
- High efficiency and metering accuracy
- Five frame sizes from 2 cc to 62 cc per revolution
- Corrosion resistant main cases
- High outlet pressures
- Fixed flow outputs with accurate adjustment options
- Easy installation, maintenance and service
- Various seal options including magnetic drive couplings
- Large bearings for long service life
| Pump model | C01 | C04 | C07 | C20 | C38 |
|---|---|---|---|---|---|
| Geometric displacement (cc/rev) | 2 | 6 | 11.5 | 33 | 62 |
| Maximum speed (rpm) | 1800 | 1800 | 1800 | 1800 | 1800 |
| Minimum speed (rpm) | 200 | 200 | 200 | 200 | 200 |
| Max outlet pressure TDI (bar) | 210 | 210 | 210 | 210 | 210 |
| Max outlet pressure MDI (bar) | 250 | 250 | 250 | 250 | 250 |
