Description

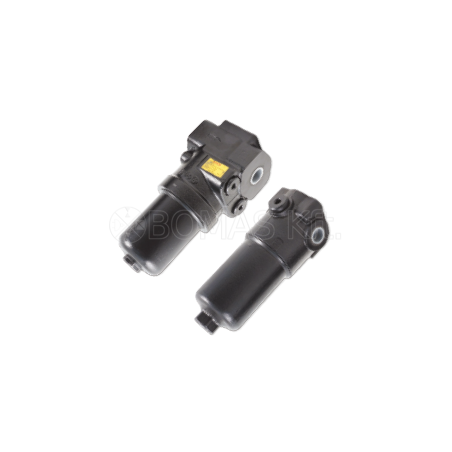

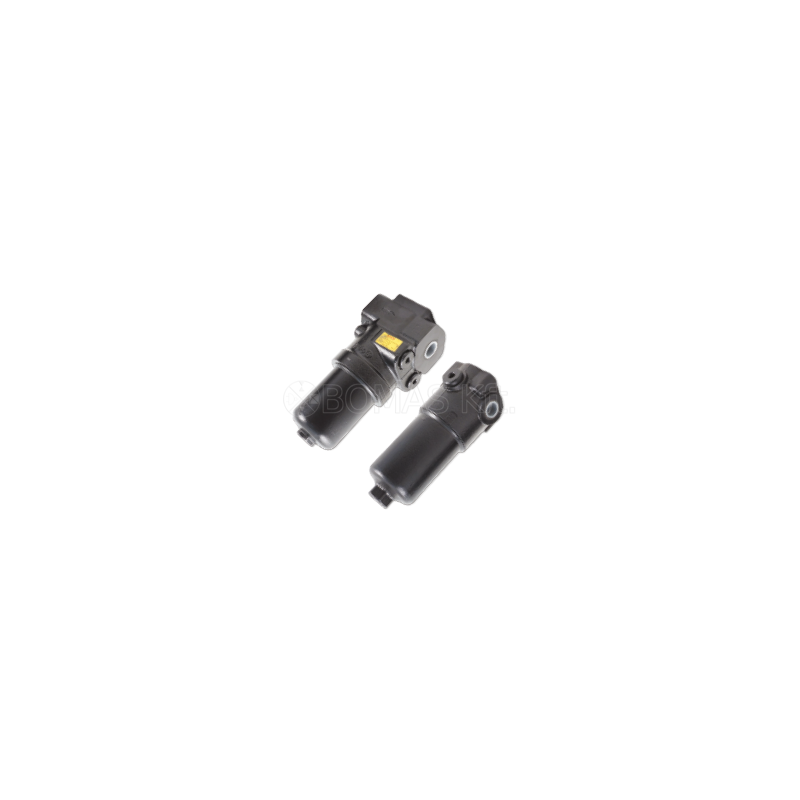

High pressure filters
Feaures:
- Working temperature: between -30 and +90 degrees Celsius
- Inorganic filter.
- Level of filteration 10 micron absolute (ß10 = 200).
- Max. differential pressure: 20 bar
| Flow rate (l/min) | Bypass valve calibration (bar) | Maximum / test pressure (bar) | A (mm) | Mounting B (BSP) | D (mm) | E (mm) | F (mm) | Filter surface (cm2) |
Retention (ISO MTD) | Filter reference | Item | Cartridge reference |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 6 | 420 / 600 | 199 | 1/2 " | 25.5 | 46.5 | 113 | 560 | 4.5 | BFPL06010AA | 1 | BCPL06010AA |
| 80 | 6 | 280 / 420 | 250 | 3/4 " | 27.5 | 54.5 | 122 | 908 | 7.3 | BFPL08010AA | 2 | BCPL08010AA |
| 145 | 6 | 280 / 420 | 358 | 1 " |
27.5 |
54.5 | 230 | 1808 | 14.5 | BFPL12010AA | 2 | BCPL12010AA |
