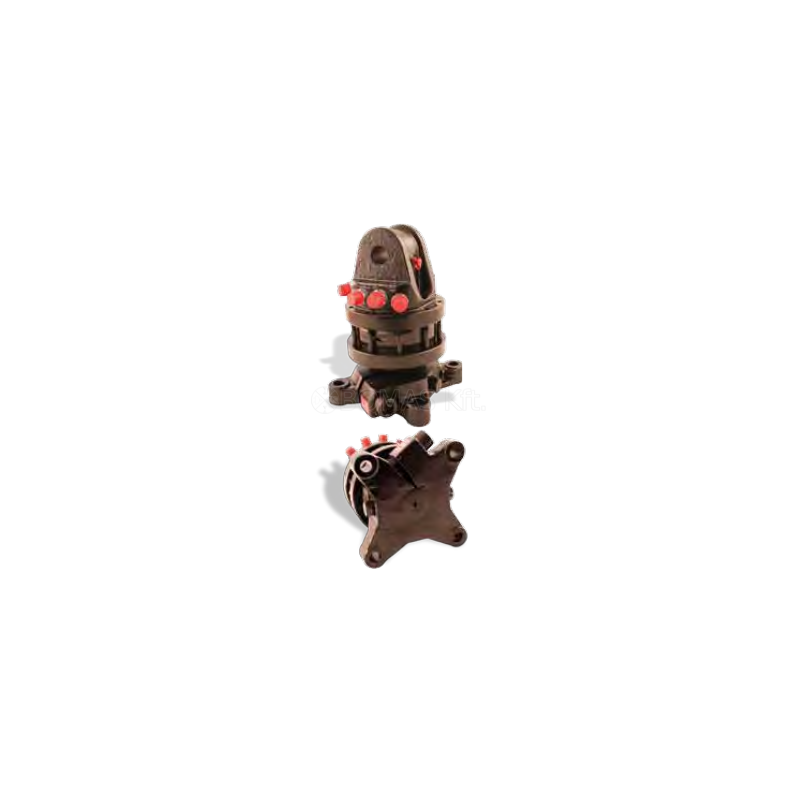

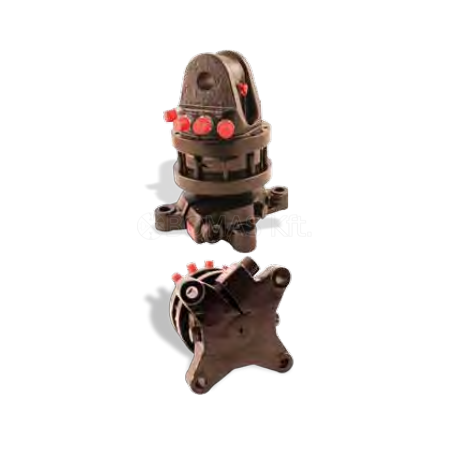

Attachment rotators
With flange mount
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
ROTATOR WITH PLATE
Advantages:
- The widest range of rotators (from 1 to 16 t).
- Product in stock.
- Reliable: each rotator is tested.
- 2-year-guarantee.
| Static load (t) | Min. oil flow (l/min) | Max. pressure (bar) | Ports (BSP) | Torque at 250 bar (N.m) | Weight (kg) | TPlate (mm) | Diameter upper fixing (mm) | Reference |
|---|---|---|---|---|---|---|---|---|
| 3 | 20 | 200 | Rotator and tool in 3/8 | 720 | 22 | 140 X 140 | 25 | BROT030CP0F |
| 4,5 | 20 | 200 | Rotator and tool in 3/8 | 1000 | 28 | Ø 173 X 4 holes |
25 | BROT045CP0F |
| 4,5 | 20 | 200 | Rotator and tool in 3/8 | 1000 | 28 | 140 X 140 | 25 | BROT045CP1F |
| 6 | 25 | 200 | Rotator and tool in ½ | 1750 | 43 | Ø 173 X 6 holes |
35 | BROT060CP0F |
| 10 | 30 | 250 | Rotator and tool in ½ | 2400 | 62 | Ø 173 X 6 holes |
35 | BROT100CP0F |
| 12 | 35 | 250 | Rotator and tool in ½ | 2800 | 68 | Ø 173 X 6 holes |
45 | BROT120CP0F |
| 12 | 35 | 250 | Rotator and tool in ½ + 2 ports in ¾ |
2800 | 77 | Ø 173 X 6 holes |
45 | BROT120CP1F |
| 12 | 20 | 250 + shock valve at 265 |
Rotator in ½ and tool in ¾ or 1’’ 3000 psi |
2000 | 84 | Ø 173 X 6 holes |
Ø 275 X 10 holes |
BROT120CP2F |
| 16 | 40 | 250 | Rotator and tool in ½ | 3400 | 71 | Ø 173 X 6 holes |
45 | BROT160CPOF |
| 16 | 40 | 250 | Rotator and tool in ½ + 2 ports in ¾ |
3400 | 79 | Ø 173 X 4 holes |
45 | BROT160CP1F |
