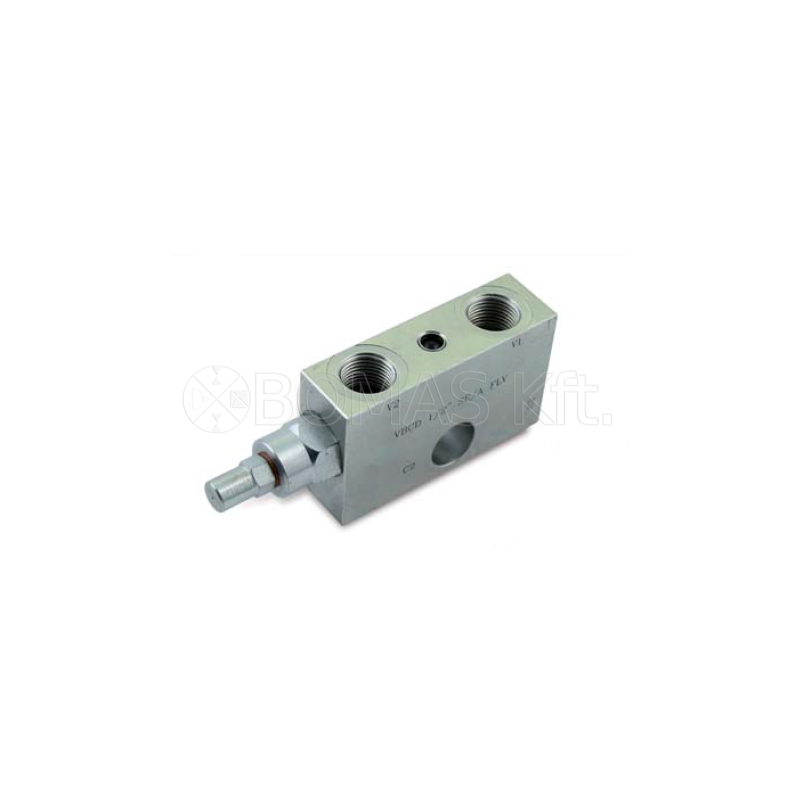

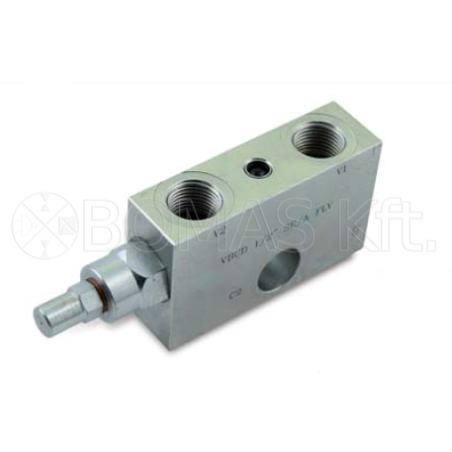

Flange-mounted single-acting overcenter valves
Load control, compact valve
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
FLANGE MOUNTED SINGLE-ACTING OVERCENTER VALVES
| Max. flow at input (l/min) | Max. pressure (bar) | Pilot ratio | Dimensions | Weight (kg) | Min. distance (mm) | Max. distance (mm) | Valve ref. +banjo bolt | Valve ref. +rigid connection | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V1,V2 C1,C2 |
L mm |
L1 mm |
L2 mm |
L3 mm |
L4 mm |
L5 mm |
L6 mm |
H1 mm |
H2 mm |
H mm |
S mm |
||||||||
| 40 | 350 | 1:4.5 | 3/8" BSP | 100 | 150 | 60 | 20 | 50 | 50 | 15 | 30 | 30 | 60 | 30 | 1.350 | 110 | 560 | BVS038VDNX1 | BVS038VDNXK |
| 60 | 350 | 1:4.5 | 1/2" BSP | 100 | 150 | 60 | 20 | 53 | 47 | 15 | 34 | 26 | 60 | 30 | 1.310 | 110 | 680 | BVS012VDNX1 | BVS012VDNXK |
