Description
Product Details

Description

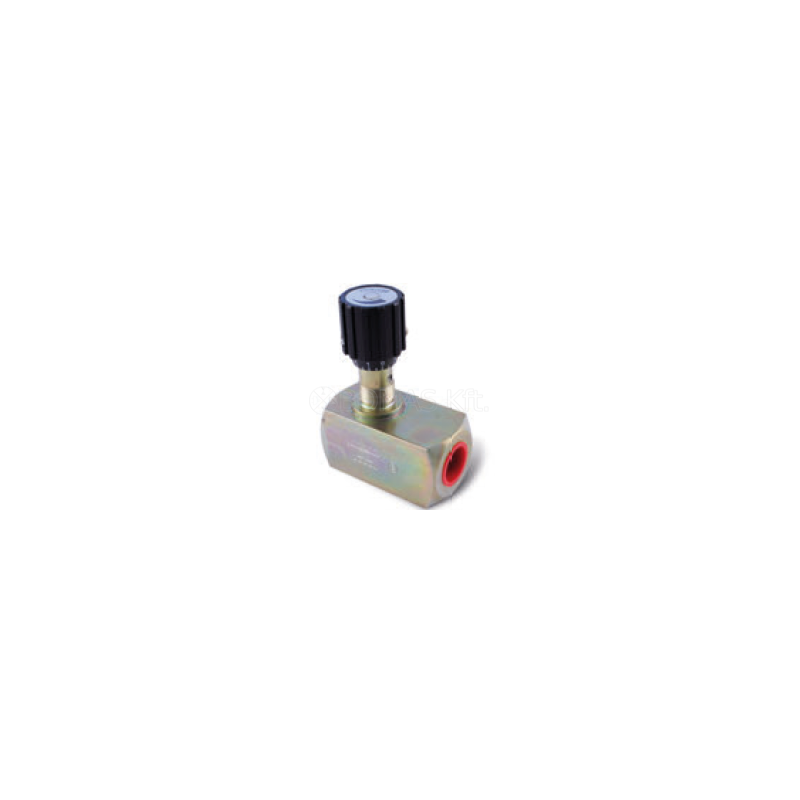

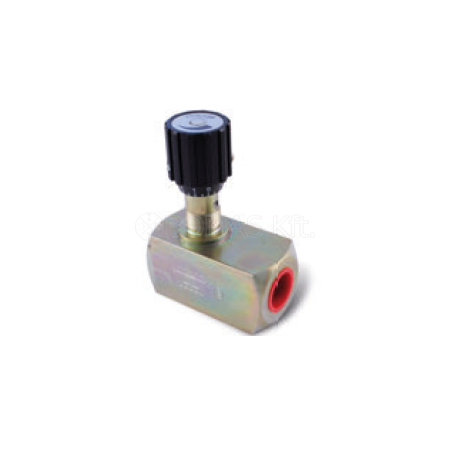

Unidirectional needle valves

- Regulated flow direction A-B (free flow in the opposite direction).
- Opening pressure: 0.5 bar.
- Maximum working pressure: 350 bar.
- Graduated rotary selector for precise flow control.
- Adjusting screw located on the side of the rotary selector for locking the valve in position.

Max. flow rate (l/min)	Opening (BSP)	Reference	Bulkhead nut	Dimensions (mm)										Weight (kg)
Max. flow rate (l/min)	Opening (BSP)	Reference	Bulkhead nut	G2	H1	H2	H3	B1	ØD1	ØD2	S (Max)	L1	L2	Weight (kg)
20	1/4	BRU7	2x BEPE11LSC	PG11	83.5	77.5	27	25	29	19	7	55	34	0.30
35	3/8	BRU10	2x BEPE11LSC	PG11	90	83	32	30	29	19	7	65	41	0.45
60	1/2	BRU13	2x BEPE16LSC	PG16	109.5	99.5	38	35	38	23	7	73	44	0.70
90	3/4	BRU19	2x BEPE16LSC	PG16	128.5	118.5	48	45	38	23	7	88	57	1.26
150	1	BRU25	2x BEPE16LSC	PG16	159	146	55	50	49	38	10	127	77	2.60
