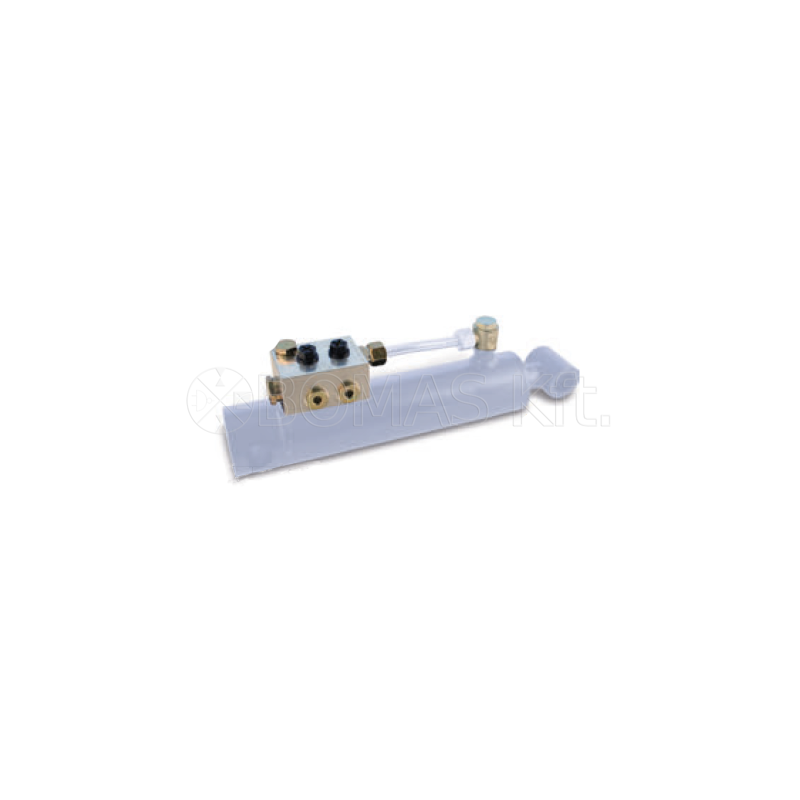

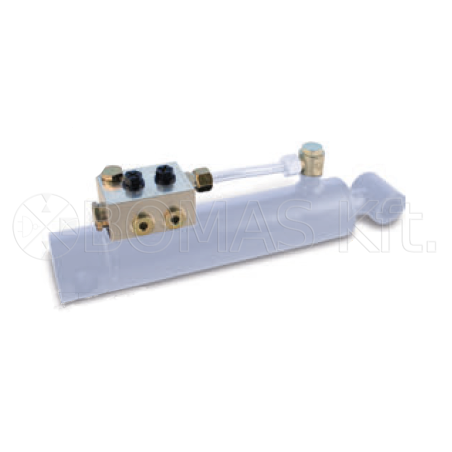

Piloted check Valves, flange-mountable on Cylinder

Load holding, compact valve

Don't forget to save your customization to be able to add to cart

Quantity

Available to order

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

CHECK VALVES, FLANGE-MOUNTABLE ON CYLINDER

These valves block single- and double- acting cylinders with internal piloting.

Composition

- Single or double valve.
- 2 complete banjo bolts (without tube).
- Optional rigid connection kit.

Type of valve	Cylinder installation	Max. pressure (bar)	Pilot ratio	Max. flow rate (l/min)	Banjo/ bolt bore Ø	E	F	G	L	M	N	P	Q	R	S	T	Reference	Rigid connection kit
Single	3/8"	250	3/1	40	8	23.5	30.5	21.5	13	22	74.5	90	65	30	45	9	BCAS038FL3	B71080090
Double	3/8"	400	3/1	40	8	-	-	-	29.5	17.5	13	70	22	30	45	9	BCAD038FL3	B71080090
Single	1/2"	250	3/1	40	10	28.5	33	26	16	27	79.5	95	75	35	50	10	BCAS012FL3	B71080092
Double	1/2"	400	3/1	40	10	-	-	-	34	30	16	80	27	35	50	10	BCAD012FL3	B71080092
