Motorized flow divider
Regulated flow 0-50 l/min
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description

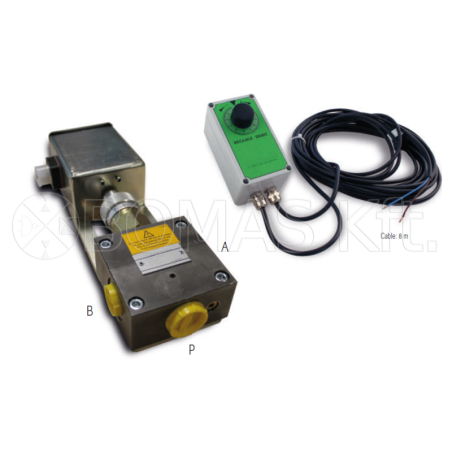

MOTORISED FLOW DIVIDERS
Applicatons:
- Variable flow rate control depending upon the position of the dial. Precise adjustment.
- The pressure of the inlet flow is establised according to the receiver with the greatest load.
- Flow divider and control box supplied pre-wired.
Note: For equipment with self-regulating pumps, it is necessary to plug the B port.
Specifications:
- 12 or 24 VDC supply.
- 1-10 scaled potentiometer.
- One-turn adjustment.
- Fuse protection.
- Integrated check valve.
- Working pressure: 315 bar.
- Nominal flow rate 65 l/min
- temperature -20°C to +80°C.
- Control pressure ±5%.
- Pressure loss P: 3.5 bar.
- Gear motor speed: 9 rpm.
- Available in the following sizes: 0-12 l/min, 0-25 l/min, 0-50 l/min.
|
Max. flow rate | Controlled flow rate [l/min] | Voltage [V] | Pressure [fbar] | Connections A,B (BSP) | Connection P (BSP) | Reference |
|---|---|---|---|---|---|---|
| 70 | 0 to 50 | 12 and 24 | 5 - 315 | 1/2 | 3/4 | BDD6550B12B |
