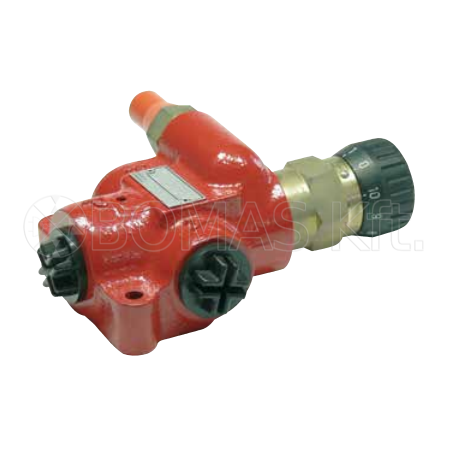

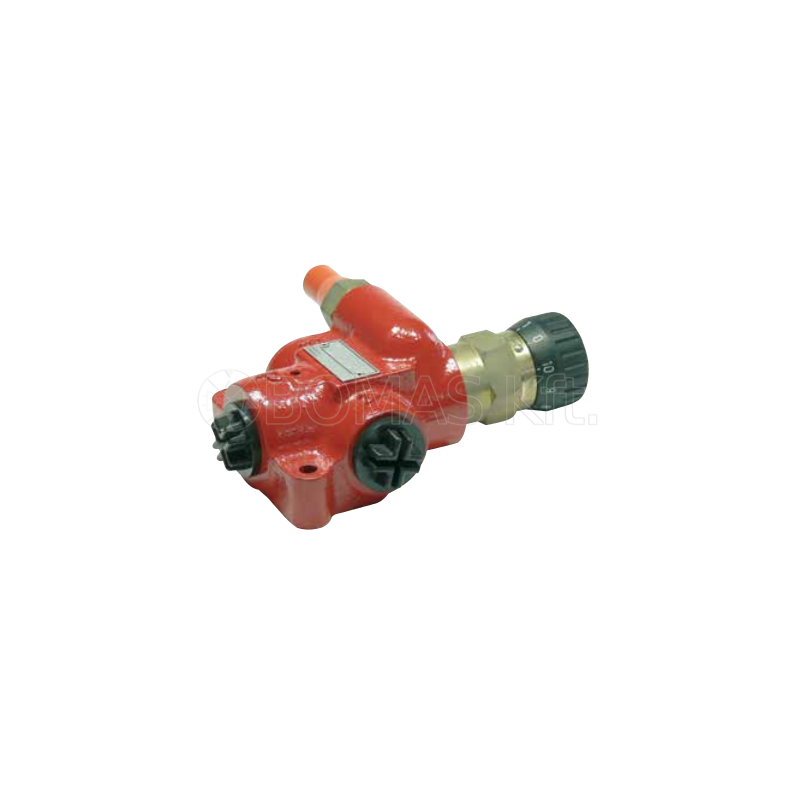

Manually adjustable flow dividers
Regulated flow 0-65 l/min
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
MANUALLY ADJUSTABLE FLOW DIVIDERS
Specifications:
- Zinc-plated bichromate body.
- Rotary selector for adjustment.
- Integrated check valve optional
- Working temperature: -20°C to +70°C.
This divider enables a constant flow rate in A, regardless of pressure variations.
It divides the flow rate at the inlet, into a manually adjustable constant priority flow rate and residual flow rate.
The residual flow rate (B) can be pressurised and directed toward a second receiver.
|
Flow rate controlled on A (l/min) |
Max. flow rate in P (l/min) |
Max.pressure (bar) | Non-return check valve |
Connections | Reference | |
| P | A, B | |||||
| 0 - 6 | 70 | 315 | - | M22x1.5 | M22x1.5 | BDDR7006MSD221M |
| 0 - 12 | yes | BSP 1/2" | BSP 1/2" | BDDR7012MAD012G | ||
| 0 - 12 | yes | M22x1.5 | M22x1.5 | BDDR7012MAD221M | ||
| 0 - 12 | - | M22x1.5 | M22x1.5 | BDDR7012MSD221M | ||
| 0 - 25 | yes | BSP 1/2" | BSP 1/2" | BDDR7025MAD012G | ||
| 0 - 25 | yes | M22x1.5 | M22x1.5 | BDDR7025MAD221M | ||
| 0 - 25 | - | BSP 1/2" | BSP 1/2" | BDDR7025MSD012G | ||
| 0 - 25 | - | M22x1.5 | M22x1.5 | BDDR7025MSD221M | ||
| 0 - 50 | yes | BSP 1/2" | BSP 1/2" | BDDR7050MAD012G | ||
| 0 - 50 | yes | M22x1.5 | M22x1.5 | BDDR7050MAD221M | ||
| 0 - 50 | - | M22x1.5 | M22x1.5 | BDDR7050MSD221M | ||
| 0 - 65 | - | BSP 1/2" | BSP 1/2" | BDDR7065MSD012G | ||
| 0 - 65 | - | M22x1.5 | M22x1.5 | BDDR7065MSD221M | ||
