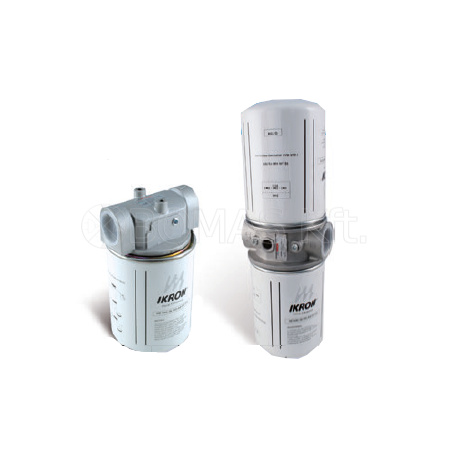

FILTRATION, IN-LINE (SPIN ON)

Features:

- Cast aluminium body.
- Bypass valve calibrated to 0.17 bar (FAL) and 1.05 bar (FRL).
- Optical clogging indicator in series.
- Max. working pressure: 7 bar.
- Filtration media: 10 μm absolute, fibreglass composite, 25 μm absolute, impregnated cellulose.
- Temperature: -30°C to +90°C.

Absolute filtration (µm)	Mounting C BSP-BSPP	Suction		Return		Spare cartridge Reference	A mm	B mm	D mm	E mm	F mm	G mm	OH mm	I mm	L mm	M mm	N mm	P mm	Q mm	R mm	S mm	Item No. on photo
Absolute filtration (µm)	Mounting C BSP-BSPP	Max.flow rate (l/min)	Reference	Max.flow rate (l/min)	Reference	Spare cartridge Reference	A mm	B mm	D mm	E mm	F mm	G mm	OH mm	I mm	L mm	M mm	N mm	P mm	Q mm	R mm	S mm	Item No. on photo
10	3/4	8	BFAL01510AA	45	BFRL04010AA	BCRL04010AA	195	46	18	96	21	215	96	54,5	38	78	21	26	50	16	19,5	1
25	3/4	15	BFAL01525AA	60	BFRL04025AA	BCRL04025AA	195	46	18	96	21	215	96	54,5	38	78	21	26	50	16	19,5	1
10	1"1/4	25	BFAL06010AA	120	BFRL12010AA	BCRL12010AA	248	64	22	134	33	273	128	72	50	114	35	37	59	15	20,5	2
25	1"1/4	50	BFAL06025AA	180	BFRL12025AA	BCRL12025AA	248	64	22	134	33	273	128	72	50	114	35	37	59	15	20,5	2
10	1"1/2	70	BFAL15010AA	240	BFRL28010AA	2xBCRL12010AA	214	249	181	126	-	-	-	-	-	-	-	-	-	-	-	3
25	1"1/2	110	BFAL15025AA	360	BFRL28025AA	2xBCRL12025AA	214	249	181	126	-	-	-	-	-	-	-	-	-	-	-	3
