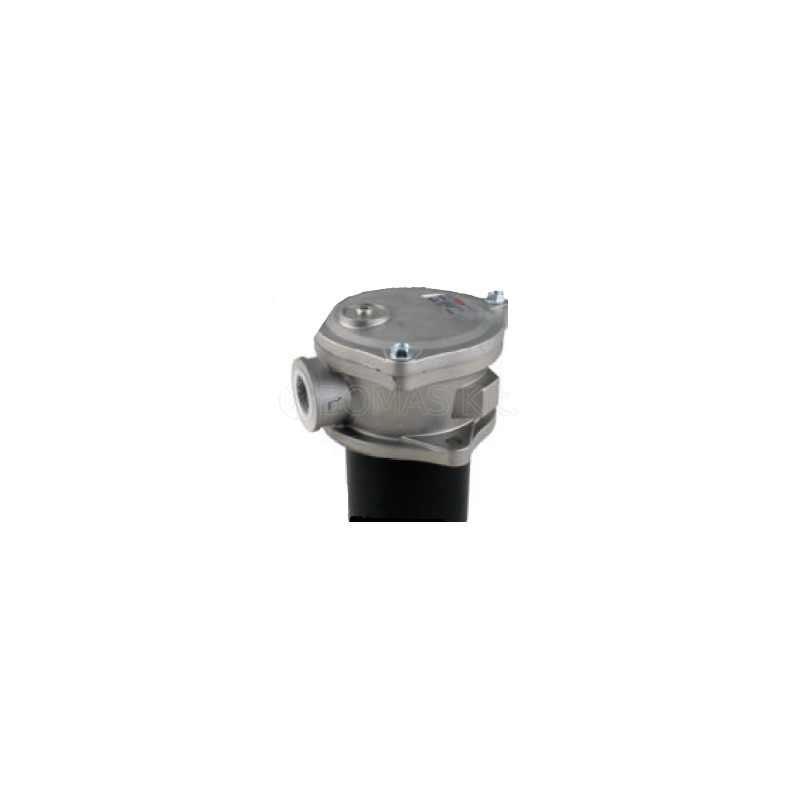

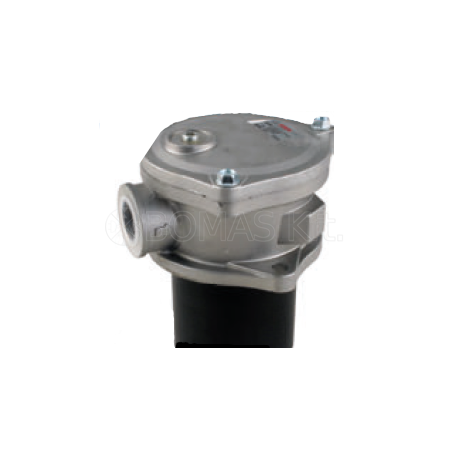

Return filter, semi-immersed
Tank mounted
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
RETURN FILTERS, SEMI-IMMERSED
Features
- Max. working pressure: 10 bar.
- Bypass valve calibrated to 1.5 bar.
- Standard filtration: 30 μm nominal (contact us for other filtration levels).
- Filter media: paper.
- Adjustment on the reservoir top.
- Filter delivered with cartridge.
| Max. flow rate (l/min) | Mounting (1 - see photo) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | L (mm) | M (mm) | O (mm) | P (mm) | Item | Reference | Spare cartridge reference |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 1/2" | 24 | 62 | 66.5 | 83 | 54.5 | 8 | 20.5 | 22 | 52.6 | 51 | 88 - 90 | 104 | 7 | 1 | BFRS02525NA | BCRS02525NA |
| 40 | 3/4" | 27.4 | 80 | 87.5 | 106.5 | 73 | 11 | 28.5 | 27 | 67 | 67 | 114 - 116 | 135 | 8.5 | 1 | BFRS04525NA | BCRS04525NA |
| 65 | 1" | 27.4 | 80 | 87.5 | 151.5 | 73 | 11 | 28.5 | 27 | 67 | 67 | 114 - 116 | 135 | 8.5 | 1 | BFRS07025NA | BCRS07025NA |
| 100 | 1" | 40.5 | 111 | 129 | 229.5 | 86.5 | 12 | 35.5 | 36.5 | - | 95 | 175 | 195 | - | 2 | BFRS12025NA | BCRS12025NA |
| 140 | 1"1/2 | 50 | 151 | 174 | 171 | 108 | 11.5 | 41 | 44.5 | - | 119 | 220 | 242 | - | 3 | BFRS16025NA | BCRS16025NA |
