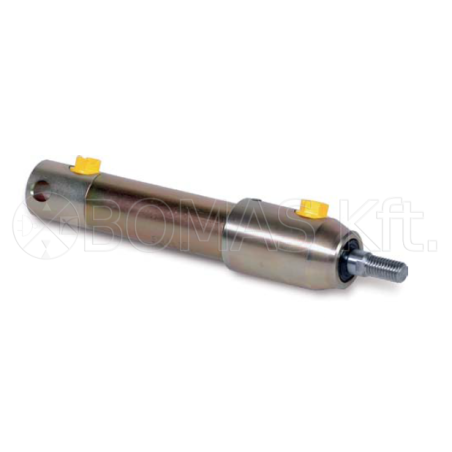

Micro Cylinders

Double acting small size cylinders

Product customization

Don't forget to save your customization to be able to add to cart

Quantity

Available to order

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

MICRO CYLINDERS

Specifiations:

- Hardened chrome rod, zinc-plated bi-chromate body.
- Max. working pressure: 200 bar.
- Supply ports adjustable on rod side.
- Connections: BSP 1/8" on all sizes

Rod Ø (A)[mm]	Piston Ø (B) [mm]	Stroke [mm]	Mounting length (E) [mm] (distance from bore centerline to shoulder on rod)	Foot thickness (C) [mm]	Mounting bore Ø (D) [mm]	Cap outside Ø (F) [mm]	Sleeve outside Ø (G) [mm]	Foot to cap (H) [m]	Cap length (I) [mm]	Mounting bore to connection (J) [mm]	Cap end to connection (K) [mm]	Rod thread length (L) [mm]	Rod thread size (M)	Volume [cm³]	Reference	Clevis reference	Ball joint reference
12	20	25	118	9	10	35	28	47	60	15	23,5	18	M10x1.5	12	BDE122025F	BCH10M10	BRVF10
		50	143	9	10	35	28	72	60	15	23,5	18	M10x1.5	20	BDE122050F
		80	173	9	10	35	28	102	60	15	23,5	18	M10x1.5	29	BDE122080F
16	25	50	146	11	12	40	35	69	65	18	25	22	M12x1.75	31	BDE162550F	BCHC12M12	BRVFA12A
		100	196	11	12	40	35	119	65	18	25	22	M12x1.75	56	BDE1625100F
		150	246	11	12	40	35	169	65	18	25	22	M12x1.75	80	BDE1625150F
		200	296	11	12	40	35	219	65	18	25	22	M12x1.75	105	BDE1625200F
