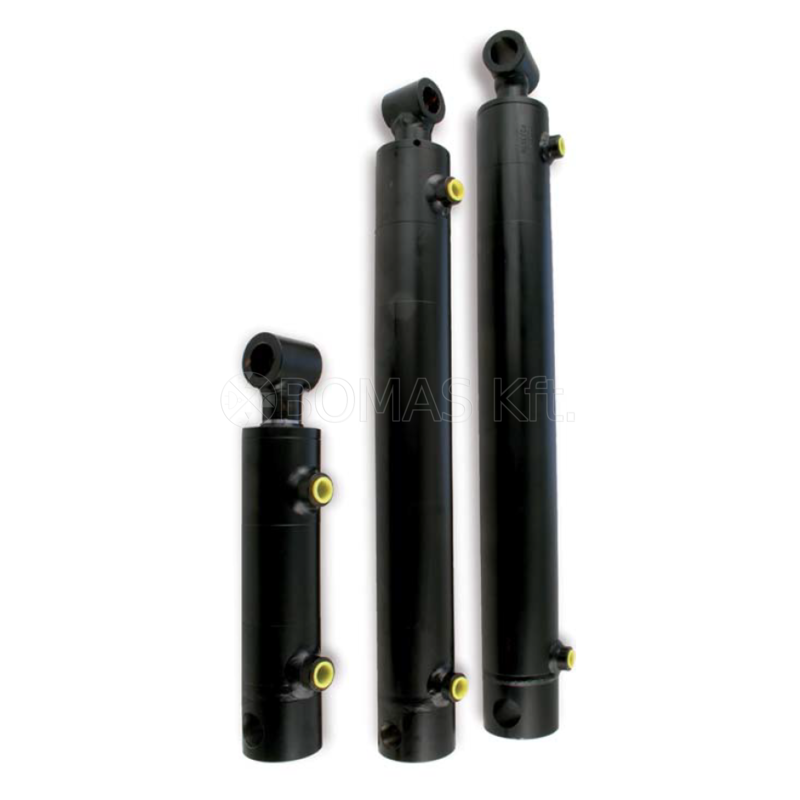

Double-acting cylinders

Both ends with bore for mounting

Product customization

Don't forget to save your customization to be able to add to cart
  • 250 char. max
Quantity
Available to order

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

DOUBLE-ACTING CYLINDERS WITH BORE

Specifications:
- Working pressure: 200 Bar
- Test pressure: 300 bar
- Max. speed 0,5 m/s
- For mineral hydraulic oil
- Sealing type: Polyurethane lip seal + additional dust seal
- Black primer painted RAL 9005
- Size tolerances: +/-2mm and +/-2° bore tolerance: H12

Rod ∅
(A) [mm]		Piston ∅
(B) [mm]		Stroke
[mm]

Mounting
length
(EAF) [mm]

(distance
between
bore
centers)

Mounting
element
bore ∅
(D) [mm]		Connection - sleeve end distance
(E) [mm]		Connection height
[mm]		Connections (H) [BSP "]Neck length
(L) [mm]		Connection - foot dist. (N1) [mm]Bore - foot dist.
(R) [mm]		Sleeve outside Ø
(U) [mm]		Mounting element width (U) [mm]Mounting element outside diameter (W) [mm]Force at 200 bar [daN]Weight [kg]Reference
Pull Push
16 32 50 184 15,2 39 15 1/4 35 31 14 40 30 28 1012 1414 1 BV160320050JF
16 32 100 234 15,2 39 15 1/4 35 31 14 40 30 28 1012 1414 1,5 BV160320100JF
16 32 200 334 15,2 39 15 1/4 35 31 14 40 30 28 1012 1414 2 BV160320200JF
25 40 100 246 20,4 39 15 1/4 41 39 18 49 35 36 1530 2512 3 BV250400100JF
25 40 200 346 20,4 39 15 1/4 41 39 18 49 35 36 1530 2512 4 BV250400200JF
25 40 300 446 20,4 39 15 1/4 41 39 18 49 35 36 1530 2512 5 BV250400300JF
25 40 400 546 20,4 39 15 1/4 41 39 18 49 35 36 1530 2512 6 BV250400400JF
25 40 500 646 20,4 39 15 1/4 41 39 18 49 35 36 1530 2512 7 BV250400500JF
25 40 700 846 20,4 39 15 1/4 41 39 18 49 35 36 1530 2512 9 BV250400700JF
25 40 1000 1146 20,4 39 15 1/4 41 39 18 49 35 36 1530 2512 12 BV250401000JF
30 50 100 273 25,4 46 15 3/8 50 42 22 59 45 42 2512 3926 5 BV300500100JF
30 50 200 373 25,4 46 15 3/8 50 42 22 59 45 42 2512 3926 6 BV300500200JF
30 50 250 423 25,4 46 15 3/8 50 42 22 59 45 42 2512 3926 6,5 BV300500250JF
30 50 300 473 25,4 46 15 3/8 50 42 22 59 45 42 2512 3926 7 BV300500300JF
30 50 400 573 25,4 46 15 3/8 50 42 22 59 45 42 2512 3926 8 BV300500400JF
30 50 500 673 25,4 46 15 3/8 50 42 22 59 45 42 2512 3926 9 BV300500500JF
30 50 600 773 25,4 46 15 3/8 50 42 22 59 45 42 2512 3926 10 BV300500600JF
30 50 700 873 25,4 46 15 3/8 50 42 22 59 45 42 2512 3926 11 BV300500700JF
30 50 1000 1173 25,4 46 15 3/8 50 42 22 59 45 42 2512 3926 14 BV300501000JF
30 60 200 373 25,4 48 15 3/8 48 42 22 69 45 42 4240 5654 6 BV300600200JF
30 60 300 473 25,4 48 15 3/8 48 42 22 69 45 42 4240 5654 7 BV300600300JF
30 60 400 573 25,4 48 15 3/8 48 42 22 69 45 42 4240 5654 8 BV300600400JF
30 60 500 673 25,4 48 15 3/8 48 42 22 69 45 42 4240 5654 9 BV300600500JF
30 60 600 773 25,4 48 15 3/8 48 42 22 69 45 42 4240 5654 10 BV300600600JF
30 60 700 873 25,4 48 15 3/8 48 42 22 69 45 42 4240 5654 11,5 BV300600700JF
35 60 200 373 25,4 48 15 3/8 48 42 22 69 45 42 3730 5654 7 BV350600200JF
35 60 250 432 25,4 48 15 3/8 48 42 22 69 45 42 3730 5654 8 BV350600250JF
35 60 300 473 25,4 48 15 3/8 48 42 22 69 45 42 3730 5654 8,5 BV350600300JF
35 60 400 573 25,4 48 15 3/8 48 42 22 69 45 42 3730 5654 10 BV350600400JF
35 60 500 673 25,4 48 15 3/8 48 42 22 69 45 42 3730 5654 11,5 BV350600500JF
35 60 600 773 25,4 48 15 3/8 48 42 22 69 45 42 3730 5654 13 BV350600600JF
35 60 700 873 25,4 48 15 3/8 48 42 22 69 45 42 3730 5654 14,5 BV350600700JF
35 70 200 396 30,4 50 15 3/8 58 49 27 80 60 50 5772 7696 8 BV350700200JF
35 70 300 496 30,4 50 15 3/8 58 49 27 80 60 50 5772 7696 10 BV350700300JF
35 70 400 596 30,4 50 15 3/8 58 49 27 80 60 50 5772 7696 12 BV350700400JF
35 70 500 696 30,4 50 15 3/8 58 49 27 80 60 50 5772 7696 14 BV350700500JF
35 70 600 796 30,4 50 15 3/8 58 49 27 80 60 50 5772 7696 16 BV350700600JF
35 70 700 896 30,4 50 15 3/8 58 49 27 80 60 50 5772 7696 18 BV350700700JF
45 70 200 396 30,4 50 15 3/8 58 49 27 80 60 50 4516 7696 10,5 BV450700200JF
45 70 300 496 30,4 50 15 3/8 58 49 27 80 60 50 4516 7696 13 BV450700300JF
45 70 400 596 30,4 50 15 3/8 58 49 27 80 60 50 4516 7696 14,5 BV450700400JF
45 70 500 696 30,4 50 15 3/8 58 49 27 80 60 50 4516 7696 16 BV450700500JF
45 70 600 796 30,4 50 15 3/8 58 49 27 80 60 50 4516 7696 19 BV450700600JF
45 70 700 896 30,4 50 15 3/8 58 49 27 80 60 50 4516 7696 21 BV450700700JF
40 80 300 505 30,4 58 15 3/8 61 48 27 90 60 50 7540 10052 13 BV400800300JF
40 80 400 605 30,4 58 15 3/8 61 48 27 90 60 50 7540 10052 14,5 BV400800400JF
40 80 500 705 30,4 58 15 3/8 61 48 27 90 60 50 7540 10052 16 BV400800500JF
40 80 600 805 30,4 58 15 3/8 61 48 27 90 60 50 7540 10052 19 BV400800600JF
40 80 700 905 30,4 58 15 3/8 61 48 27 90 60 50 7540 10052 21 BV400800700JF
50 80 300 505 30,4 58 15 3/8 61 48 27 90 60 50 6126 10052 16 BV500800300JF
50 80 400 605 30,4 58 15 3/8 61 48 27 90 60 50 6126 10052 18,5 BV500800400JF
50 80 500 705 30,4 58 15 3/8 61 48 27 90 60 50 6126 10052 21 BV500800500JF
50 80 600 805 30,4 58 15 3/8 61 48 27 90 60 50 6126 10052 23 BV500800600JF
50 80 700 905 30,4 58 15 3/8 61 48 27 90 60 50 6126 10052 26 BV500800700JF
50 80 1000 1205 30,4 58 15 3/8 61 48 27 90 60 50 6126 10052 34 BV500801000JF
56 90 300 536 40,4 60 17 1/2 72 61 35 100 70 70 7973 12724 21,5 BV560900300JF
56 90 400 636 40,4 60 17 1/2 72 61 35 100 70 70 7973 12724 25 BV560900400JF
56 90 500 736 40,4 60 17 1/2 72 61 35 100 70 70 7973 12724 27,5 BV560900500JF
56 90 700 936 40,4 60 17 1/2 72 61 35 100 70 70 7973 12724 33,5 BV560900700JF
56 90 1000 1236 40,4 60 17 1/2 72 61 35 100 70 70 7973 12724 37 BV560901000JF
60 100 200 436 40,4 63 17 1/2 69 61 35 115 70 70 10053 15708 24,5 BV601000200JF
60 100 400 636 40,4 63 17 1/2 69 61 35 115 70 70 10053 15708 38 BV601000400JF
60 100 600 836 40,4 63 17 1/2 69 61 35 115 70 70 10053 15708 42 BV601000600JF
60 100 800 1036 40,4 63 17 1/2 69 61 35 115 70 70 10053 15708 50 BV601000800JF
60 100 1000 1236 40,4 63 17 1/2 69 61 35 115 70 70 10053 15708 58 BV601001000JF
