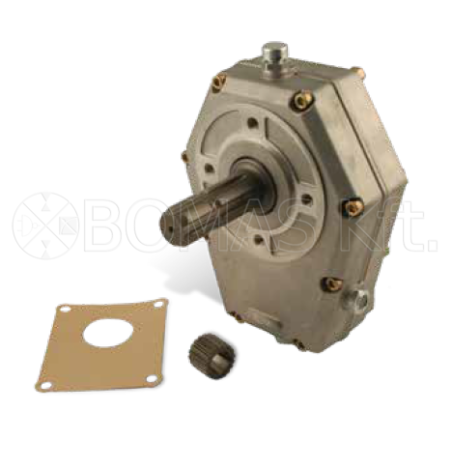

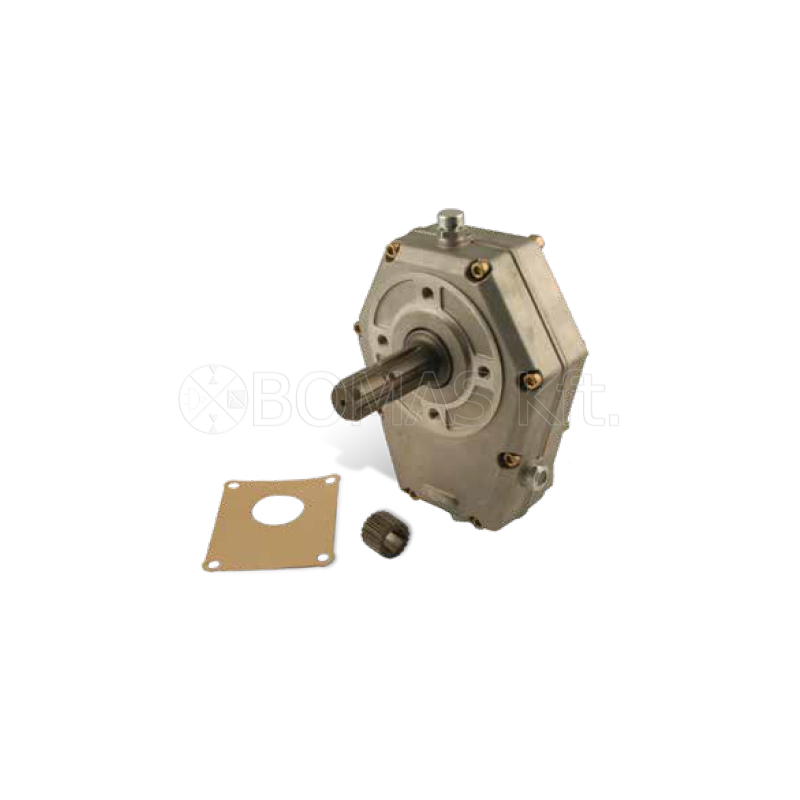

Ag. PTO multiplier gearboxes for gear pumps

Aluminium housing

Don't forget to save your customization to be able to add to cart

Quantity

Available to order

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

ALUMINIUM MULTIPLIER GEARBOXES FOR PUMPS
WITH ITALIAN SHAFT AND FRONT FLANGE

Category	1" 3/8 PTO input/output	Number of outputs	Reference for complete kit	Reference for multiplier gearbox only	Sleeve reference	Paper seal reference	Speed reduction gear ratio	Max. torque at inlet (daN.m)	Max. power at inlet (kW)	Item
Group 2	Male	1	BMUL20M35	BML32M35	BMC2	BJPF201	1 / 3.35	18.6	10.3	1
Group 2	Female	1	BMUL20F35	BML32F35	BMC2	BJPF201	1 / 3.35	18.6	10.3	2
Group 2	Female with coupling	1		BML32F33A	BMC2	BJPF201	1 / 3.35	18.6	10.3	3
Group 2	Male	1	-	BML52M35	BMC32	BJPF201	1 / 3.5	46	20	4
Group 3	Male	1	BMUL30M35	52M35	BMC3	BJPF301	1 / 3.5	46	20	4
Group 2	Female	1	-	BML52F35	BMC32	BJPF201	1 / 3.5	46	20	4
Group 3	Female	1	BMUL30F35	BML52F35	BMC3	BJPF301	1 / 3.5	46	20	4
Group 2	Male	2		B502	BMC32 x2	BJPF201 x2	1 / 3.5	90.4	35	5
Group 3	Male	2		B502	BMC3 x2	BJPF301 x2	1 / 3.5	90.4	35	5
Group 2	Female with coupling	1		BML52F35AA	BMC32	BJPF201	1 / 3.5	46	20	4
Group 3	Female with coupling	1		BML52F35AA	BMC3	BJPF301	1 / 3.5	46	20	4
Group 2	Male / Male	1		BML52M35M	BMC32	BJPF201	1 / 3.5	46	20	6
Group 3	Male / Male	1		BML52M35M	BMC3	BJPF301	1 / 3.5	46	20	6
Group 2	Female / Female	1		BML52F35F	BMC32	BJPF201	1 / 3.5	46	20	6
Group 3	Female / Female	1		BML52F35F	BMC3	BJPF301	1 / 3.5	46	20	6
