Cylindrical Ball Valves
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
CYLINDRICAL BALL VALVES
Valve with 2 ports
- Cylinder locking.
| Mounting | Flow rate (l/min) |
Pressure (bar) |
Item | Reference |
| 13BSP (20 x 150) male | 20 | 200 | 1 | BROB8EFG13 |
| 3/8BSP female | 20 | 200 | 2 | BROB8FG038 |

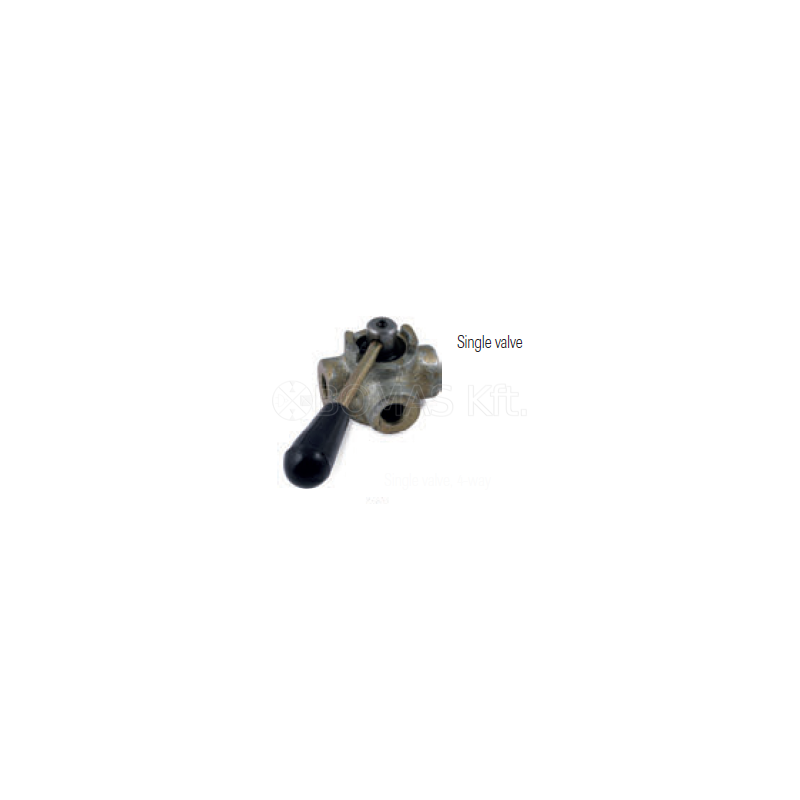

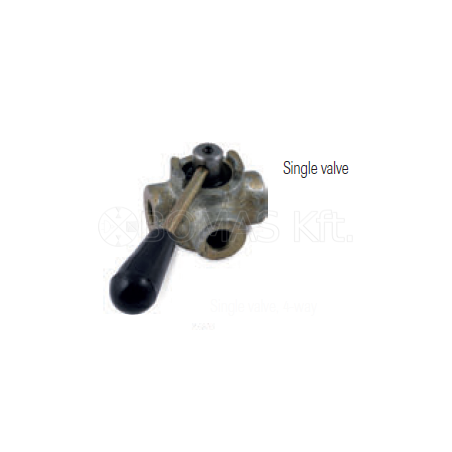

Single or double valves with 3 or 4 ports
- Manual control for 2 separate actuators.
| Number of openingstr | Max. flow rate (l/min)tr | Max pressure (bar)tr | Openings A, B, (T), PP (BSP)tr | Ctr | Dtr | Etr | Ftr | Gtr | Htr | Itr | Ltr | Mtr | Ntr | Single reference | Double reference | |||
| Valves with 3 openings | 60 | 350 | 3/8" | 72 | 25 | 8.5 | 32 | 77 | 24.5 | 41 | 115 | 156 | 62 | BRBC3038T |  |
BRBC6038T |  |
|
| 90 | 350 | 1/2" | 85 | 32 | 10.5 | 37 | 94 | 25 | 52 | 115 | 167 | 63.5 | BRBC3012T | BRBC6012T | ||||
| 120 | 250 | 3/4" | 85 | 32 | 10.5 | 37 | 94 | 25 | 52 | 115 | 167 | 63.5 | BRBC3034T | BRBC6034T | ||||
| 180 | 220 | 1" | 98 | 32 | 11 | 50 | 115 | 31.5 | 64 | 130 | 194 | 90 | BRBC3100T | - | ||||
| Valves with 4 openings | 60 | 300 | 3/8" | 77 | 54 | 8.5 | 27 | 77 | 24 | 39 | 115 | 154 | 70 | BRBC4038T |  |
- | ||
| 90 | 250 | 1/2" | 90 | 68 | 8.5 | 32 | 90 | 28 | 45 | 120 | 165 | 80 | BRBC4012T | - | ||||
| 120 | 220 | 3/4" | 95 | 74 | 8.5 | 38 | 93 | 32 | 48 | 125 | 173 | 90 | BRBC4034T | - | ||||
| Type of ball |
Position 1 | Position 2 | Position 3 |
| T |  |
 |
 |
