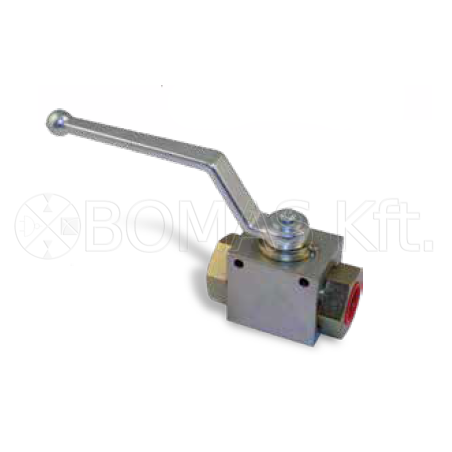

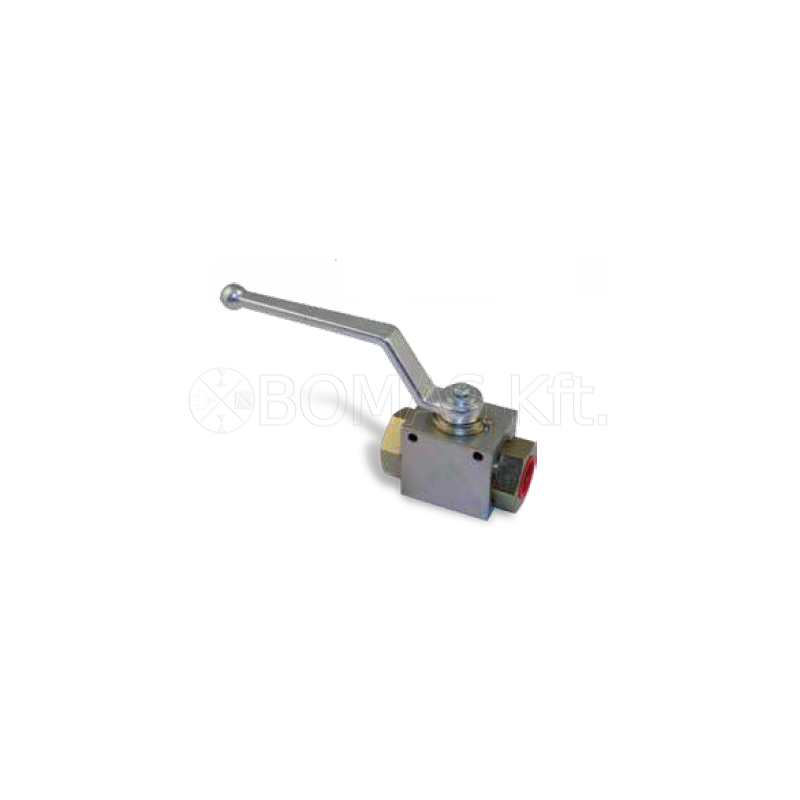

Ball Valves, 2 Ports
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
BALL VALVES, 2 PORTS
| Thread (BSP) |
DN (mm) |
Max. pressure (bar) |
L (mm) |
B (mm) |
a (mm) |
d (mm) |
L1 (mm) |
B2 (mm) |
H (mm) |
H1 (mm) |
H2 (mm) |
H4 (mm) |
SW (mm) |
M | S (mm) |
H9 (mm) |
K (mm) |
Reference |
| 1/4 BSP | 6 | 500 | 69 | 26 | 5 | 4,5 | 36,2 | 26 | 43,4 | 32 | 12,8 | 11 | 9 | M5 | 3 | 36 | 107 | BRBS2014 |
| 3/8 BSP | 10 | 500 | 73 | 32 | 5 | 6,5 | 43,2 | 32 | 49,2 | 38 | 16,25 | 10.9 | 9 | M5 | 3 | 36 | 107 | BRBS2038 |
| 1/2 BSP | 13 | 500 | 85 | 37.5 | 4,8 | 6,5 | 48,2 | 35 | 51,2 | 40 | 17,25 | 10.9 | 9 | M5 | 3 | 36 | 107 | BRBS2012 |
| 3/4 BSP | 20 | 400 | 96 | 45 | 6,5 | 6,5 | 62,2 | 49 | 73,4 | 57 | 24,5 | 16 | 14 | M6 | 4 | 65 | 165 | BRBS2034HP |
| 1" BSP | 25 | 350 | 113 | 55 | 6 | 6,7 | 66,2 | 60 | 76,6 | 60 | 26,5 | 16 | 14 | M6 | 4 | 65 | 165 | BRBS2100 |
| 1" 1/4 BSP |
25 | 350 | 113 | 55 | 6 | 6,7 | 66,2 | 60 | 76,6 | 60 | 26,5 | 16 | 14 | M6 | 4 | 65 | 165 | BRBS2114 |
OPERATING NUTS
| Valves | Reference |
| 1/4", 3/8", 1/2" | 71070166 |
| 3/4", 1", 1/4" | 71070165 |
