Description

- wide range of flanges for pumps: square DIN, Italian, ISO flanges, etc.

	A diameter (mm)	B or C x D diameter	Reference	CHC Screw	O-ring reference

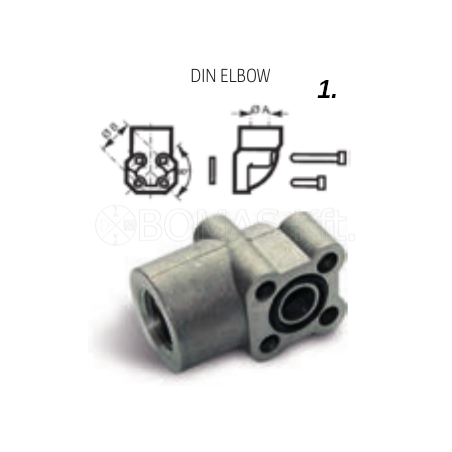

DIN ELBOW Picture no.1	3/8	30	BBCC3030A38	2 M6X30 + 2 M6X45	BJTBCC3030
	1/2	30	BBCC3030A12	2 M6X30 + 2 M6X45	BJTBCC3030
	1/2	35	BBCC3535A12	2 M6X30 + 2 M6X45	BJTBCC3535
	1/2	40	BBCC4040A12	2 M6X30 + 2 M6X55	BJTBCC4040
	3/4	40	BBCC4040A34	2 M6X30 + 2 M6X55	BJTBCC4040
	3/4	55	BBCC5555A34	2 M8X45 + 2 M8X60	BJTBCC5555
	1"	55	BBCC5555A10	2 M8X45 + 2 M8X60	BJTBCC5555

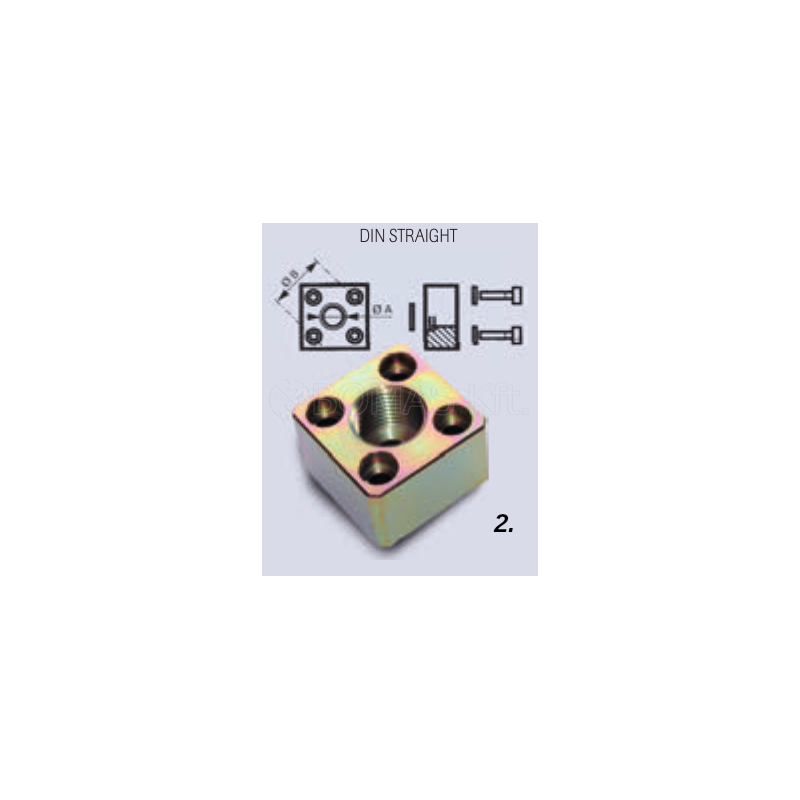

DIN STRAIGHT Picture no. 2	1/4	30	BBDC3030A14	BCHC6X15	BJTBCC3030
	3/8	30	BBDC3030A38	BCHC6X15	BJTBCC3030
	3/8	40	BBDC4040F38	BCHC6X30	BJTBCC4040
	1/2	35	BBDC3535F12	BCHC6X30	BJTBCC3535
	1/2	40	BBDC4040Fz1	BCHC6X30	BJTBCC4040
	3/4	40	BBDC4040F34	BCHC6X30	BJTBCC4040
	3/4	51	BBDC5151F34	BCHC10X30	BJTBCC5151
ITALIAN STANDARD ELBOW Picture no. 3	3/8	26	BBCL2626F38	BCHC5X20	BJTBCL2626
	1/2	26	BBCL2626F12	BCHC5X20	BJTBCL2626
	3/8	230	BBCL3030F38	BCHC6X20	BJTBCL3030
	1/2	30	BBCL3030F12	BCHC6X20	BJTBCL3030
	1/2	40	BBCL4040F12	BCHC8X25	BJTBCL4040
	3/4	40	BBCL4040F34	BCHC8X25	BJTBCL4040
	1"	51	BBCL5151F10	BCHC10X30	BJTBCL5151
	1"	62	BBCL6262F10	BCHC12X35	BJTBCL6262
ISO STRAIGHT Picture no. 4	1/4	38 X 17,5	BBDR3817A14	BCHC6X20	BJTBDR3817
	3/8	38 X 17,5	BBDR3817A38	BCHC6X20	BJTBDR3817
	1/2	38 X 17,5	BBDR3817A12	BCHC6X20	BJTBDR3817
	1/2	47,6 X 22,2	BBDR4822A12	BCHC6X25	BJTBDR4822
	3/4	47,6 X 22,2	BBDR4822A34	BCHC6X25	BJTBDR4822
	1"	47,6 X 22,2	BBDR4822A10	BCHC6X25	BJTBDR4822
	3/4	52,2 X 26,2	BBDR5226A34	BCHC8X25	BJTBDR4822
	1"	52,2 X 26,2	BBDR5226A10	BCHC8X25	BJTBDR4822
	3/4	70 X 35,7	BBDR7036A34	BCHC8X25	BJTBDR7036
	1"	70 X 35,7	BBDR7036A11	BCHC8X25	BJTBDR7036
