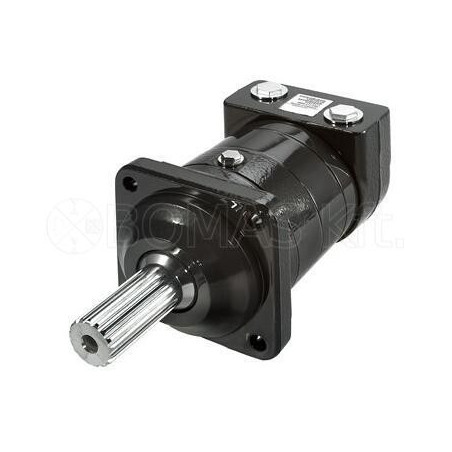

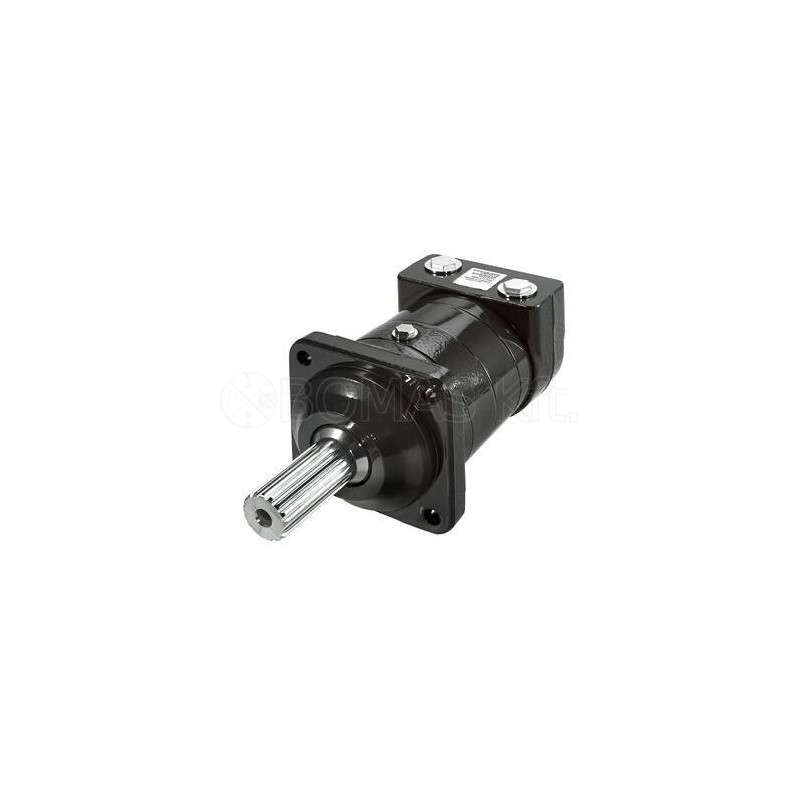

Danfoss TMT

Brand Danfoss

Heavy duty orbital motor

Product customization

Don't forget to save your customization to be able to add to cart

Quantity

Available to order

Product Tags

Danfoss Hydraulic Motor Motor Orbital LSHT TMT TMTW TMTH TMTU TMTHS

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

General architecture:

- Distributor valve: Disc type

- Gearwheel set: Geroller type

- Bearings: Roller bearings

Danfoss TMT motors are "up-sized OMT" motors, with stronger overall build, including larger bearings, cardan shaft and better gearwheel set, increased number of assembly bolts. The increased allowable pressure means increased transferrable power in a similar-sized package. TMT product portfolio, its features and options (shaft, mounting flange, integrated brake) are mainly aimed at applying them as wheel drive motors on mobile machinery.

Types: TMT, TMT EMD, TMT FL, TMT FL V, TMT V, TMTH FL V, TMTHS, TMTU, TMTW, TMTW EM, TMTW FL, TMTWFL EMD, TMTW FL V

Sizes: 250, 315, 400, 470, 500, 630

Danfoss Technical Information

In case you need a seal kit or a complete motor, please always provide us the full type and part no. of the motor, for example: TMT 315, 151Z3031

Type	Hydraulic size [cm³]	Max. continous speed [rpm]	Max. continous torque [Nm]	Max. continous output power [kW]	Max. continous pressure drop [bar]	Min. starting torque [Nm]
TMT 250	251.8	500	940	35.0	250	780
TMT 315	326.3	380	1230	35.0	250	1060
TMT 400	410.9	305	1520	37.0	250	1360
TMT 470	477.3	270	1760	37.0	250	1500
TMT 500	494.8	250	1770	35.0	250	1530
TMT 630	629.1	200	1830	27.0	200	1600
