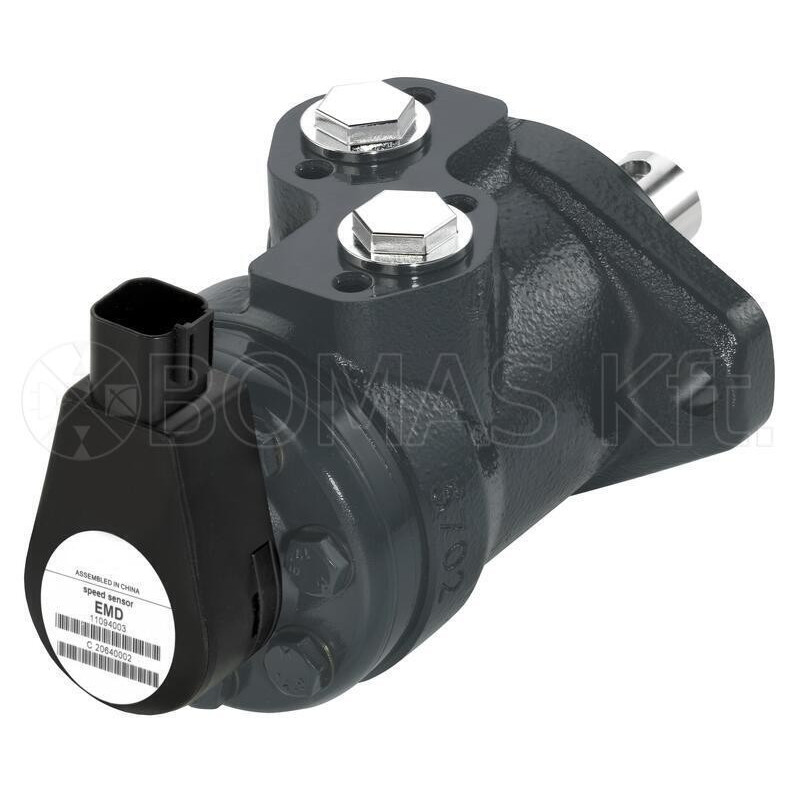

WHITE OMP X

Brand White Drive Motors & Steering

Medium size gerotor type hydraulic motor

Product customization

Don't forget to save your customization to be able to add to cart

Quantity

Available to order

Product Tags

Danfoss Hydraulic Motor Motor Orbital LSHT OMP OMPW

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

General architecture:

- Distributor valve: Spool type

- Gearwheel set: Gerotor type

- Bearings: Slipper bearings

Types: OMP, OMP X, OMP C, OMP EM, OMP EMD, OMP N, OMPW, OMPW C, OMPW N

Sizes: 25, 32, 40, 50, 60, 80, 100, 125, 160, 200, 250, 315, 400, 630 [cm3/rev]

White Drive Technical Information for OMP, OMR and OMH

White Drive Technical Information for the new OMP X and OMR X

In case you need a seal kit or a complete motor, please always provide us the full type and part no. of the motor, for example:

OMP 50 151-0310; or OMPW 200 N 11028276

Properties of the White Drive OMP and OMP X motors we keep on our stock (European, standard versions):

Hydraulic ports:

- A-B 1/2" BSP

- drain: 1/4" BSP

Shaft:

- d=25 mm, cylindrical with key

Mounting flange:

- A2 (SAE A with 2 bolts, mounting flange dia.=3.25" (=82.55mm) )

Type	Part.no. of Eur. standard versions	Hydraulic size [cm³]	Max. continous speed [rpm]	Max. continous torque [Nm]	Max. continous power output [kW]	Max. continous pressure drop [bar]	Min. starting torque [Nm]
OMP X 25 (OMP 25)	11185769 (151-0340) (151-0640)	25.0	1600	40 (33)	5.4 (4.5)	115 (100)	35 (30)
OMP X 32 (OMP 32)	11185775 (151-0341) (151-0641)	32.0	1560	50 (43)	6.7 (5.8)	115 (100)	45 (40)
OMP X 40 (OMP 40)	11186719 (151-0341) (151-0642)	40.0	1500	52 (52)	7.0 (7.0)	115 (100)	55 (45)
OMP X 50 (OMP 50)	11185771 (151-0310) (151-0610)	48.6	1230	110 (93)	9.8 (10.0)	160 (140)	155 (80)
OMP X 80 (OMP 80)	11186721 (151-0311) (151-0611)	77.8	770	170 (150)	9.8 (10.0)	160 (140)	135 (135)
OMP X 100 (OMP 100)	11186725 (151-0312) (151-0612)	97.3	615	210 (190)	11.2 (11.0)	160 (140)	190 (170)
OMP X 125 (OMP 125)	11185743 (151-0313) (151-0613)	125.0	480	270 (240)	11.2 (10.0)	160 (140)	240 (210)
OMP X 160 (OMP 160)	11186705 (151-0314) (151-0614)	155.7	385	335 (300)	11.2 (10.0)	160 (140)	320 (280)
OMP X 200 (OMP 200)	11186708 (151-0315) (151-0615)	194.6	310	400 (300)	10.9 (8.0)	155 (115)	375 (270)
OMP X 250 (OMP 250)	11186711 (151-0316) (151-0616)	242.3	250	400 (300)	8.4 (6.0)	120 (90)	375 (280)
OMP X 315 (OMP 315)	11186712 (151-0317) (151-0617)	306.1	195	400 (300)	7.0 (5.0)	100 (75)	380 (280)
OMP X 400 (OMP 400)	11186714 (151-0318) (151-0618)	389.2	155	400 (300)	5.3 (4.0)	75 (60)	370 (280)
