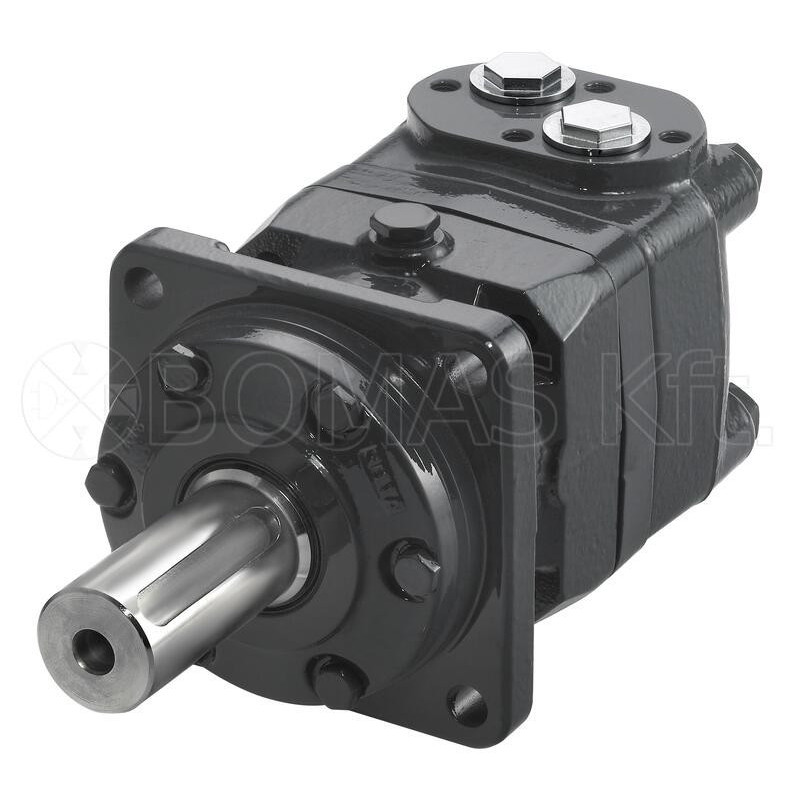

Danfoss OMT

Brand Danfoss

Large geroller type orbital motor

Product customization

Don't forget to save your customization to be able to add to cart

Quantity

Available to order

Product Tags

Danfoss Hydraulic Motor Motor Orbital LSHT OMT

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

General architecture:

- Distributor valve: Disc type

- Gearwheel set: Geroller type

- Bearings: Roller bearings

Types: OMT, OMT EM, OMT EMD, OMT FH, OMT FH V, OMT FK, OMT FL, OMT FL V, OMT FX, OMT HD, OMT N, OMT O, OMT T, OMT V, OMT V HD, OMT V HD EM, OMTS, OMTS EMD, OMTS HD, OMTS T, OMTS V, OMTU, OMTU HD, OMTU O, OMTW, OMTW, EMD, OMTW HD
Sizes: 160, 200, 250, 315, 400, 500, 630

Danfoss Technical OMT Information

In case you need a seal kit or a complete motor, please always provide us the full type and part no. of the motor, for example:

OMT 400, 151B3004

Properties of the Danfoss OMT motors we keep on our stock (European, standard versions):
Hydraulic ports:
- A-B 3/4" BSP
- drain: 1/4" BSP
Shaft:
- d=40 mm, cylindrical with key
Mounting flange:
- Standard OMT (4 holes, pitch: 160mm, flange diameter: 125 mm)

Type	Part no. of Eur. standard versions	Hydraulic size [cm3]	Max. continous speed [rpm]	Max. continous torque [Nm]	Max. continous output power [kW]	Max. continous pressure drop [bar]	Min. starting torque [Nm]
OMT 160	151B3000	161.1	625	470	26.5	200	410
OMT 200	151B3001	201.4	625	590	33.5	200	520
OMT 250	151B3002	251.8	500	730	33.5	200	630
OMT 315	151B3003	326.3	380	950	33.5	200	890
OMT 400	151B3004	410.9	305	1080	30.0	180	970
OMT 500	151B3005	523.6	240	1220	36.5	160	1060
