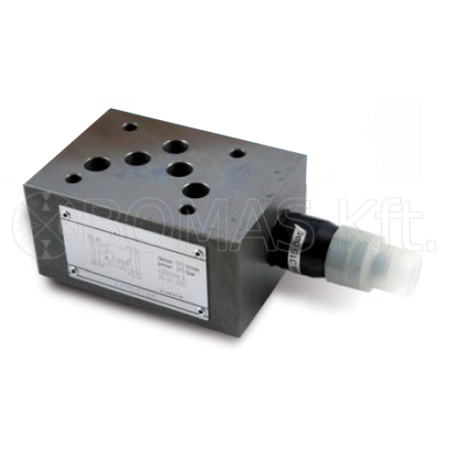

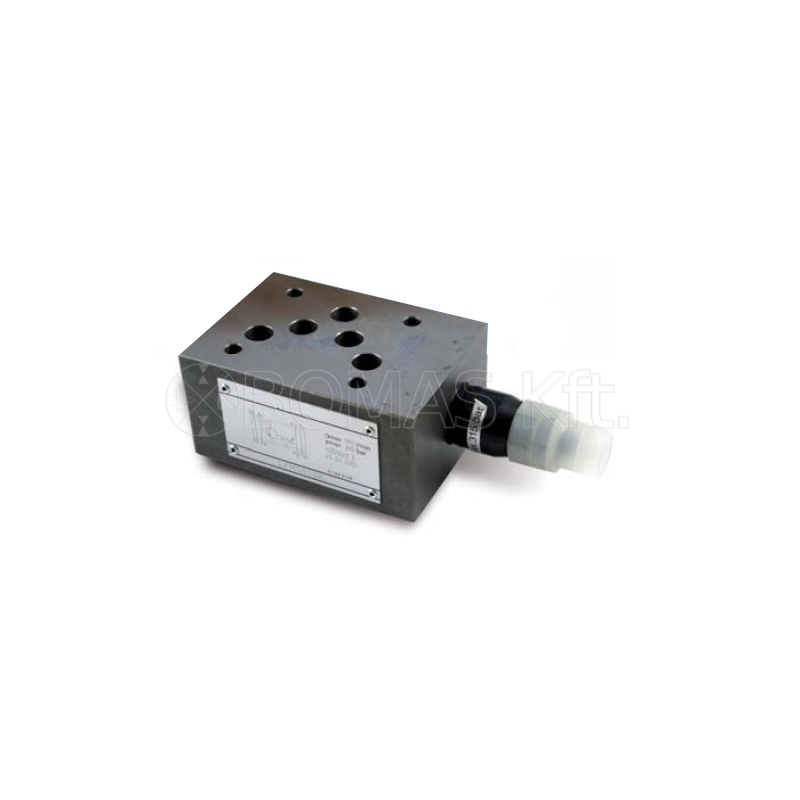

Pressure Relief Valves, CETOP 3 and 5

Pressure limitation on lines A and B.

Product customization

Don't forget to save your customization to be able to add to cart
  • 250 char. max
Quantity
Available to order

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

PRESSURE RELIEF VALVES, MODULAR, CETOP 3 AND 5

Specifications

- Anti-shock function.
- Mounting between electrohydraulic valve and base block.
- Installation standards ISO 4401 NG6, NG10.

Size Flow rate
(l/min)		 Pressure
(bar)		 Pressure relief valve
on opening		 L1
(mm)		 L2
(mm)		 L3
(mm)		 L4
(mm)		 L5
(mm)		 Reference
max.100 bar		 Reference
max.315 bar
CETOP 3 50 315 A→T - 154 - 90 9 BLPM3ATAK* BLPM3ATBK*
B→T - - 154 90 40.5 - BLPM3BTBK*
P→T - - 154 90 40.5 BLPM3PTAK* BLPM3PTBK*
A and B→T 249 - - 121 40 BLPM3ATBTAK* -
CETOP 5 100 315 B→T - 161 100.5 18 - - BLPM5BTBK*
P→T 156 - 95.5 28.5 - - BLPM5PTBK*


*Cap screw: BCHC05070A x 4
