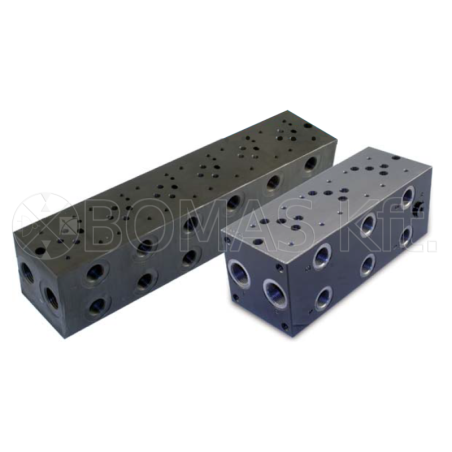

BASE BLOCKS FOR CETOP 3 AND 5

Applications

These base blocks are designed to accommodate components in the CETOP 3 or 5 architecture, in a parallel connection. These blocks are mostly used for building multiple function directional valve blocks.
All base blocks are without pressure relief valve.

Number of stations	CETOP 3			CETOP 5
	Dimensions (mm)		Reference	Dimensions (mm)		Reference
	X	Y	Reference	X	Y	Reference
1	70	58	BEL0301	80	56	BE0501
2	120	108	BEL0302	160	136	BEL0502
3	170	158	BEL0303	240	216	BEL0503
4	220	208	BEL0304	320	296	BEL0504
5	270	258	BEL0305	400	376	BEL0505
6	320	308	BEL0306	480	456	BEL0506
7	370	358	BE0307	560	536	BE0507
8	420	408	BE0308	640	616	BE0508

Technical data:

	CETOP 3	CETOP 5
Material	Steel	Steel
Max. working pressure (bar)	300	300
Max. flow rate (l/min)	40	70
P: Pressure	1/2"	3/4"
T: Return	1/2"	1"
A and B	3/8"	1/2"
