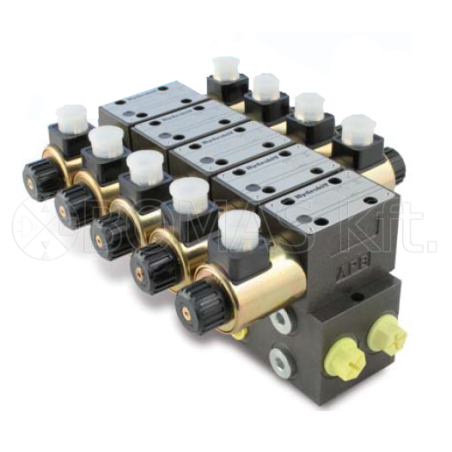

ELECTRICALLY CONTROLLED HYDRAULIC SPOOL VALVE KITS

Applications

- Several functions can be integrated into one mounted array, they can be easily remotely controlled from the driver's cab.
- E.g.: tractor cab, sprayers, potato harvester.

Including

- P1 base + electrohydraulic valve.

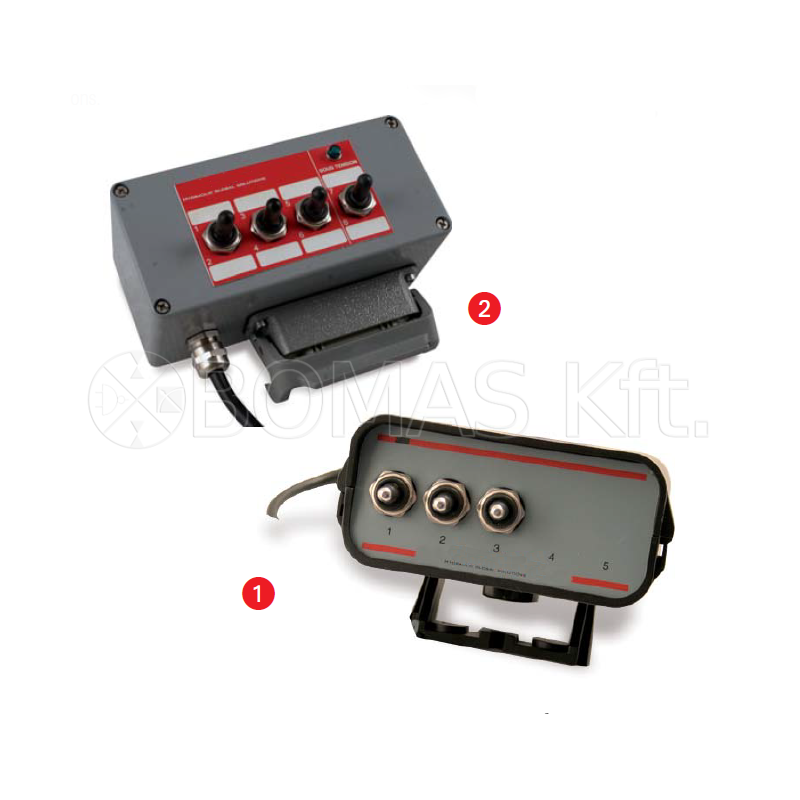

- 1 control box with a 5 m loom for 2 to 5 functions, 8 m for 6 to 10 functions.

Options

- Ergonomic handle with loom.
- Ergonomic handle with arm rest.
- Pilot-operated check valve, flangeable (load-holding on cylinder):
reference BCPM03AB for 40 l/min version
and BCPM05AB for 70 l/min version.

Number of functions	Voltage: 12 V
Number of functions	Reference for flow rate Max. 40 l/min	Reference for flow rate Max. 70 l/min	Control box illustration
2	BDH240COFH	BDH280COFH	1
3	BDH340COFH	BDH380COFH	1
4	BDH440COFH	BDH480COFH	1
5	BDH540COFH	BDH580COFH	1
6	BDH640COFH	BDH680COFH	2
7	BDH740COFH	-	2
8	BDH840COFH	-	2
9	BDH940COFH	-	2
10	BDH1040COFH	-	2
