Low mount S-Acting Telescopic Cylinders
  • Low mount S-Acting Telescopic Cylinders
  • Low mount S-Acting Telescopic Cylinders

Low mount S-Acting Telescopic Cylinders

With trunnion mounts and bored rod

Product customization

Don't forget to save your customization to be able to add to cart
  • 250 char. max
Quantity
Available to order

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

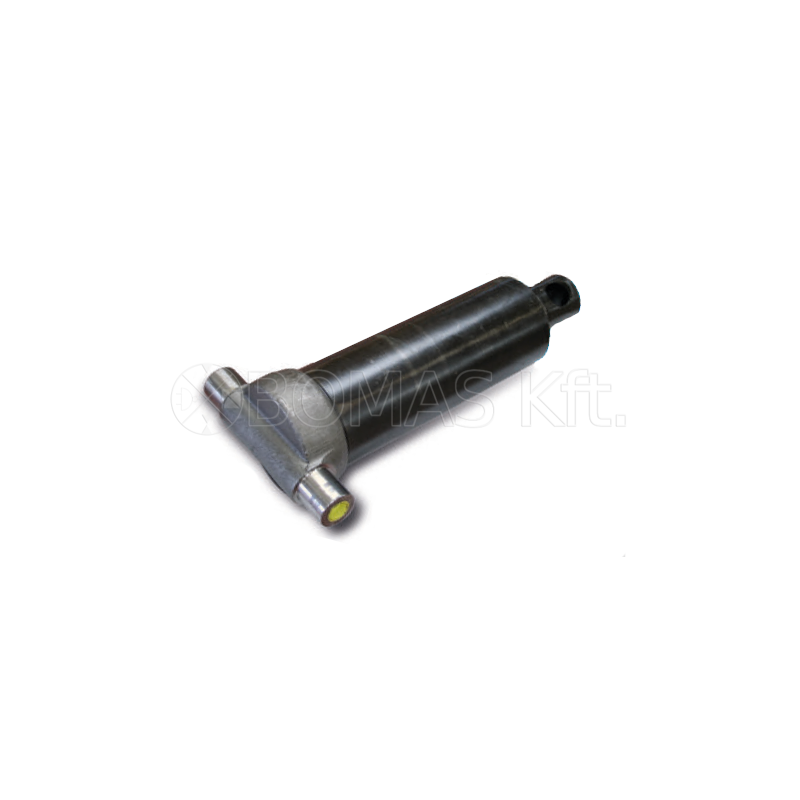

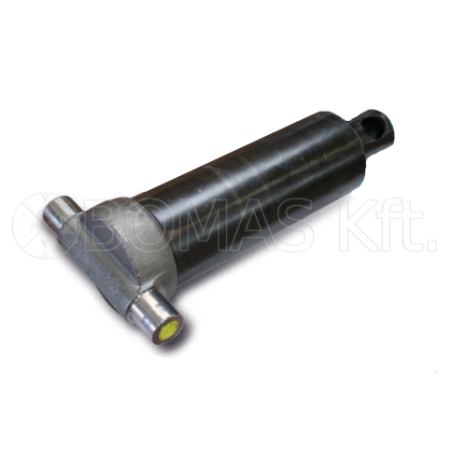

SINGLE-ACTING TELESCOPIC CYLINDERS WITH
TRUNNION MOUNTS AND BORED ROD

Preferences:
- Wide range: many references with quick delivery
- Interchangeable with other brands.
- Easy adaptation with numerous fixing options.
- Easy maintenance, screwed head.

Hydraulic connectors

- One side fits the swivel rod of the cylinder (see two types, marked "1" and "2" in both tables), the other end can be chosen from the table.
- Parachute valve: In case of a hose rupture the parachute valve slows down the cylinder retraction, ensuring a slower descent of the load.

Size and type of connector Parachute valve Reference
1 Smooth polished tube, 17 mm
(for welded fitting)		 None BRT17D
1 Male DIN 15L None BRT15LD1
1 Female BSP ½" Built-in BCBMF181A012G
2 Male DIN 15L None BRT15LD
2 Female BSP ½" Built-in BCBMF221A012G

Telescopes

Reference Mounting length [mm] Section ∅ [mm] Stroke [mm] Force @180bar [t] Rod end bore ∅ (A) [mm] Swivel ∅ (B) [mm] Bearing distance (C) [mm] Width of swivel rod (D) [mm] Rod end ∅ (T) [mm] Sleeve outside ∅ (G) [mm] Neck length (F) [mm] Rod end – bore distance (F') [mm] Volume [liter] Type of swivel connector (see table)
1 2 3 4
BV20610455BD 340 46 61     455 3,5 26 45 105 45 44 80 27 25 1,1 1
BV20760495BD 368 61 76     495 5,5 31 45 115 45 59 95 32 30 2,0 1
BV30760500BD 282 46 61 76   500 5,0 26 45 115 45 44 95 32 25 1,6 1
BV20610525BD 375 46 61     525 3,5 26 45 105 45 44 80 27 25 1,3 1
BV30760593BD 312 46 61 76   593 5,0 26 45 115 45 44 95 32 25 2,0 1
BV20610595BD 410 46 61     595 3,5 26 45 105 45 44 80 27 25 1,5 1
BV20760595BD 418 61 76     595 5,5 31 45 115 45 59 95 32 30 2,3 1
BV20880595BD 430 68 88     595 8,5 36 45 130 45 66 106 32 30 3,0 1
BV20610695BD 460 46 61     695 3,5 26 45 105 45 44 80 27 25 1,7 1
BV20760695BD 468 61 76     695 5,5 31 45 115 45 59 95 32 30 2,7 1
BV30760790BD 377 46 61 76   790 5,0 26 45 115 45 44 95 27 25 2,5 1
BV20610795BD 510 46 61     795 3,5 26 45 105 45 44 80 27 25 2,0 1
BV20760795BD 518 61 76     795 5,5 31 45 115 45 59 95 32 30 3,0 1
BV20880795BD 530 68 88     795 8,5 36 45 130 45 66 106 32 30 4,0 1
BV30760893BD 412 46 61 76   893 5,0 26 45 115 45 44 95 32 25 2,8 1
BV30910893BD 422 61 76 91   893 7,5 31 45 135 45 59 112 32 30 4,2 1
BV31070893BD 432 68 88 107   893 11,0 36 45 150 45 66 124 42 30 5,7 1
BV20880895BD 580 68 88     895 8,5 36 45 130 45 66 106 32 30 4,5 1
BV21070895BD 580 88 107     895 13,5 36 45 150 45 86 124 42 30 6,8 1
BV30761043BD 462 46 61 76   1043 5,0 26 45 115 45 44 95 32 25 3,3 1
BV30911043BD 472 61 76 91   1043 7,5 31 45 135 45 59 112 32 30 5,0 1
BV31071043BD 482 68 88 107   1043 11,0 36 45 150 45 66 124 42 30 6,6 1
BV21071095BD 680 88 107     1095 13,5 36 45 150 45 86 124 42 30 8,3 1
BV41451210BD 475 88 107 126 145 1210 20,0 36 50 210 50 86 170 42 30 13,7 2
BV31261273BD 570 88 107 126   1273 16,5 36 45 175 45 86 152 42 30 12,0 1
BV30911283BD 552 61 76 91   1283 7,5 31 45 135 45 59 112 32 30 6,0 1
BV31071283BD 562 68 88 107   1283 11,0 36 45 150 45 66 124 42 30 8,2 1
BV41071290BD 452 61 76 91 107 1290 10,0 31 45 150 45 59 124 32 30 7,5 1
BV31261483BD 640 88 107 126   1483 16,5 36 45 175 45 86 152 42 30 13,8 1
BV41451490BD 545 88 107 126 145 1490 20,0 36 50 210 50 86 170 42 30 16.8 2
BV31071493BD 632 68 88 107   1493 11,0 36 45 150 45 66 124 42 30 9,4 1
BV41261500BD 525 68 88 107 126 1500 14,0 36 45 175 45 66 152 42 30 12,0 1
BV41451690BD 595 88 107 126 145 1690 20,0 36 50 210 50 86 170 42 30 19,0 2
BV41261700BD 575 68 88 107 126 1700 14,0 36 45 175 45 66 152 42 30 13.5 1
BV41451970BD 665 88 107 126 145 1970 20,0 36 50 210 50 86 170 42 30 22,2 2
BV41261980BD 645 68 88 107 126 1980 14,0 36 45 175 45 66 152 42 30 15.6 1
BV31262093BD 870 88 107 126   2093 16,5 36 45 175 45 86 152 42 30 20,0 1
BV41452510BD 825 88 107 126 145 2510 20,0 36 50 210 50 86 170 42 30 30,0 2

Nominal working pressure: 180 bar
