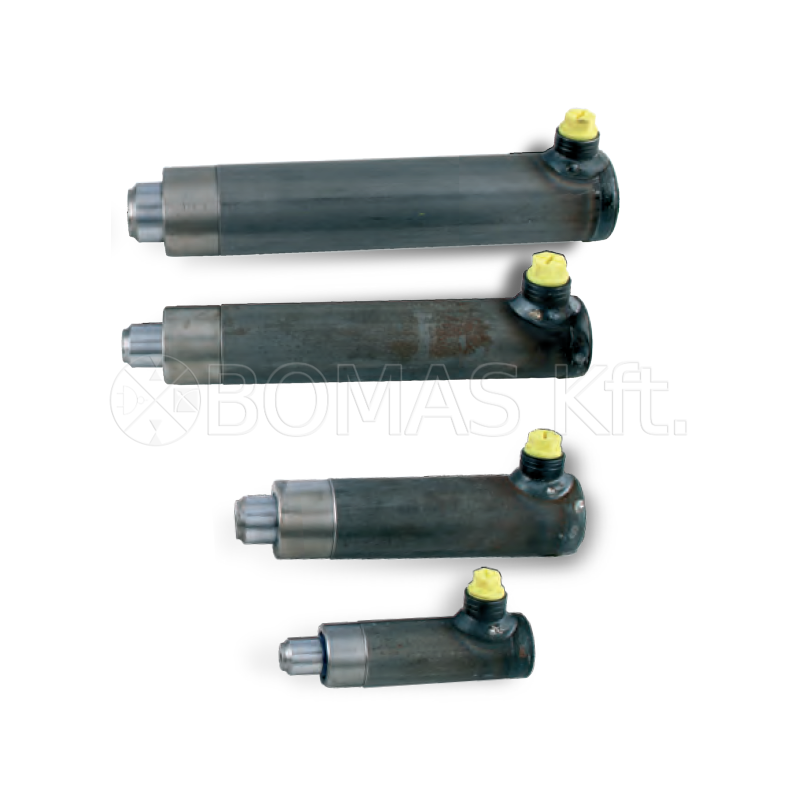

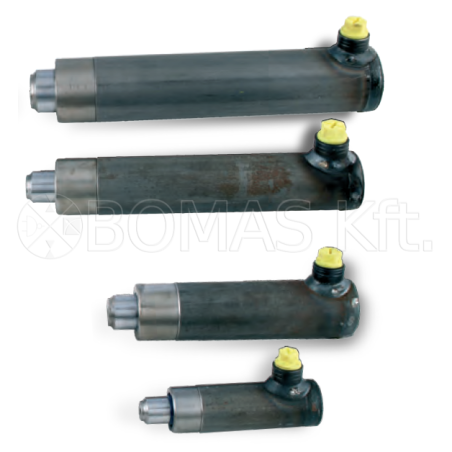

SINGLE-ACTING CYLINDERS WITHOUT MOUNTING ELEMENTS

Specifications:
- Working pressure: 200 Bar
- Test pressure: 300 bar
- Max. speed 0,5 m/s
- For mineral hydraulic oil
- Sealing type: Polyurethane lip seal + additional dust seal
- Unpainted
- Size tolerances: +/-2mm and +/-2°

Rod Ø
(D) [mm]		 Stroke
[mm]		 Mounting length
(CCD) [mm]

(distance between
ends)		 Connection - foot dist.
(A) [mm]		 Connections
(B) [Metric]		 Connection piece height
(C) [mm]		 Sleeve inner Ø
(E) [mm]		 Sleeve outside Ø
(F) [mm]		 Foot thickness (G) [mm] Foot shoulder (H) [mm] Stop ring - rod end distance (I) [mm] Cap shoulder height (J) [mm] Cap length (K) [mm] Protruding rod length (L) [mm] Sleeve length
(LR) [mm]		 Rod length (LS) [mm] Reference
16 50 135 23 M14x1,5 16 20 30 8 2 10 20 23 22 82 125 BV000160050SF
80 165 23 M14x1,5 16 20 30 8 2 10 20 23 22 112 155 BV000160080SF
100 185 23 M14x1,5 16 20 30 8 2 10 20 23 22 132 175 BV000160100SF
150 235 23 M14x1,5 16 20 30 8 2 10 20 23 22 182 225 BV000160150SF
200 285 23 M14x1,5 16 20 30 8 2 10 20 23 22 232 275 BV000160200SF
250 335 23 M14x1,5 16 20 30 8 2 10 20 23 22 282 325 BV000160250SF
300 385 23 M14x1,5 16 20 30 8 2 10 20 23 22 332 375 BV000160300SF
20 50 132 23 M14x1,5 16 25 35 8 2 10 20 20 22 82 122 BV000200050SF
100 182 23 M14x1,5 16 25 35 8 2 10 20 20 22 132 172 BV000200100SF
150 232 23 M14x1,5 16 25 35 8 2 10 20 20 22 182 222 BV000200150SF
200 282 23 M14x1,5 16 25 35 8 2 10 20 20 22 232 272 BV000200200SF
250 332 23 M14x1,5 16 25 35 8 2 10 20 20 22 282 322 BV000200250SF
300 382 23 M14x1,5 16 25 35 8 2 10 20 20 22 332 372 BV000200300SF
350 432 23 M14x1,5 16 25 35 8 2 10 20 20 22 382 422 BV000200350SF
400 482 23 M14x1,5 16 25 35 8 2 10 20 20 22 432 472 BV000200400SF
450 532 23 M14x1,5 16 25 35 8 2 10 20 20 22 482 522 BV000200450SF
500 582 23 M14x1,5 16 25 35 8 2 10 20 20 22 532 572 BV000200500SF
600 682 23 M14x1,5 16 25 35 8 2 10 20 20 22 632 672 BV000200600SF
700 782 23 M14x1,5 16 25 35 8 2 10 20 20 22 732 772 BV000200700SF
800 882 23 M14x1,5 16 25 35 8 2 10 20 20 22 832 872 BV000200800SF
900 982 23 M14x1,5 16 25 35 8 2 10 20 20 22 932 972 BV000200900SF
1000 1082 23 M14x1,5 16 25 35 8 2 10 20 20 22 1032 1072 BV000201000SF
25 100 207 23 M16x1,5 17 35 45 8 2 10 32 33 22 144 197 BV000250100SF
150 257 23 M16x1,5 17 35 45 8 2 10 32 33 22 194 247 BV000250150SF
200 307 23 M16x1,5 17 35 45 8 2 10 32 33 22 244 297 BV000250200SF
250 357 23 M16x1,5 17 35 45 8 2 10 32 33 22 294 347 BV000250250SF
300 407 23 M16x1,5 17 35 45 8 2 10 32 33 22 344 397 BV000250300SF
350 457 23 M16x1,5 17 35 45 8 2 10 32 33 22 394 447 BV000250350SF
400 507 23 M16x1,5 17 35 45 8 2 10 32 33 22 444 497 BV000250400SF
450 557 23 M16x1,5 17 35 45 8 2 10 32 33 22 494 547 BV000250450SF
500 607 23 M16x1,5 17 35 45 8 2 10 32 33 22 544 597 BV000250500SF
550 657 23 M16x1,5 17 35 45 8 2 10 32 33 22 594 647 BV000250550SF
600 707 23 M16x1,5 17 35 45 8 2 10 32 33 22 644 697 BV000250600SF
700 807 23 M16x1,5 17 35 45 8 2 10 32 33 22 744 797 BV000250700SF
800 907 23 M16x1,5 17 35 45 8 2 10 32 33 22 844 897 BV000250800SF
900 1007 23 M16x1,5 17 35 45 8 2 10 32 33 22 944 997 BV000250900SF
1000 1107 23 M16x1,5 17 35 45 8 2 10 32 33 22 1044 1097 BV000251000SF
Rod Ø
(D) [mm]		 Stroke
[mm]		 Mounting length
(CCD) [mm]

(distance between
ends)		 Connection - foot dist.
(A) [mm]		 Connections
(B) [Metric]		 Connection piece height
(C) [mm]		 Sleeve inner Ø
(E) [mm]		 Sleeve outside Ø
(F) [mm]		 Foot thickness (G) [mm] Foot shoulder (H) [mm] Stop ring - rod end distance (I) [mm] Cap shoulder height (J) [mm] Cap length (K) [mm] Protruding rod length (L) [mm] Sleeve length
(LR) [mm]		 Rod length (LS) [mm] Reference
30 50 157 23 M16x1,5 17 40 50 8 2 10 32 33 22 94 147 V000300050SF
100 207 23 M16x1,5 17 40 50 8 2 10 32 33 22 144 197 V000300100SF
150 257 23 M16x1,5 17 40 50 8 2 10 32 33 22 194 247 V000300150SF
200 307 23 M16x1,5 17 40 50 8 2 10 32 33 22 244 297 V000300200SF
250 357 23 M16x1,5 17 40 50 8 2 10 32 33 22 294 347 V000300250SF
300 407 23 M16x1,5 17 40 50 8 2 10 32 33 22 344 397 V000300300SF
350 457 23 M16x1,5 17 40 50 8 2 10 32 33 22 394 447 V000300350SF
400 507 23 M16x1,5 17 40 50 8 2 10 32 33 22 444 497 V000300400SF
450 557 23 M16x1,5 17 40 50 8 2 10 32 33 22 494 547 V000300450SF
500 607 23 M16x1,5 17 40 50 8 2 10 32 33 22 544 597 V000300500SF
600 707 23 M16x1,5 17 40 50 8 2 10 32 33 22 644 697 V000300600SF
700 807 23 M16x1,5 17 40 50 8 2 10 32 33 22 744 797 V000300700SF
800 907 23 M16x1,5 17 40 50 8 2 10 32 33 22 844 897 V000300800SF
900 1007 23 M16x1,5 17 40 50 8 2 10 32 33 22 944 997 V000300900SF
1000 1107 23 M16x1,5 17 40 50 8 2 10 32 33 22 1044 1097 V000301000SF
35 100 207 23 M18x1,5 18 45 55 8 2 10 32 33 22 144 197 V000350100SF
150 257 23 M18x1,5 18 45 55 8 2 10 32 33 22 194 247 V000350150SF
200 307 23 M18x1,5 18 45 55 8 2 10 32 33 22 244 297 V000350200SF
250 357 23 M18x1,5 18 45 55 8 2 10 32 33 22 294 347 V000350250SF
300 407 23 M18x1,5 18 45 55 8 2 10 32 33 22 344 397 V000350300SF
350 457 23 M18x1,5 18 45 55 8 2 10 32 33 22 394 447 V000350350SF
400 507 23 M18x1,5 18 45 55 8 2 10 32 33 22 444 497 V000350400SF
450 557 23 M18x1,5 18 45 55 8 2 10 32 33 22 494 547 V000350450SF
500 607 23 M18x1,5 18 45 55 8 2 10 32 33 22 544 597 V000350500SF
600 707 23 M18x1,5 18 45 55 8 2 10 32 33 22 644 697 V000350600SF
700 807 23 M18x1,5 18 45 55 8 2 10 32 33 22 744 797 V000350700SF
800 907 23 M18x1,5 18 45 55 8 2 10 32 33 22 844 897 V000350800SF
900 1007 23 M18x1,5 18 45 55 8 2 10 32 33 22 944 997 V000350900SF
1000 1107 23 M18x1,5 18 45 55 8 2 10 32 33 22 1044 1097 V000351000SF
40 50 162 23 M18x1,5 18 50 60 8 2 10 35 35 22 97 152 V000400050SF
100 212 23 M18x1,5 18 50 60 8 2 10 35 35 22 147 202 V000400100SF
150 262 23 M18x1,5 18 50 60 8 2 10 35 35 22 197 252 V000400150SF
200 312 23 M18x1,5 18 50 60 8 2 10 35 35 22 247 302 V000400200SF
250 362 23 M18x1,5 18 50 60 8 2 10 35 35 22 297 352 V000400250SF
300 412 23 M18x1,5 18 50 60 8 2 10 35 35 22 347 402 V000400300SF
350 462 23 M18x1,5 18 50 60 8 2 10 35 35 22 397 452 V000400350SF
400 512 23 M18x1,5 18 50 60 8 2 10 35 35 22 447 502 V000400400SF
450 562 23 M18x1,5 18 50 60 8 2 10 35 35 22 497 552 V000400450SF
500 612 23 M18x1,5 18 50 60 8 2 10 35 35 22 547 602 V000400500SF
600 712 23 M18x1,5 18 50 60 8 2 10 35 35 22 647 702 V000400600SF
700 812 23 M18x1,5 18 50 60 8 2 10 35 35 22 747 802 V000400700SF
800 912 23 M18x1,5 18 50 60 8 2 10 35 35 22 847 902 V000400800SF
900 1012 23 M18x1,5 18 50 60 8 2 10 35 35 22 947 1002 V000400900SF
1000 1112 23 M18x1,5 18 50 60 8 2 10 35 35 22 1047 1102 V000401000SF
Rod Ø
(D) [mm]		 Stroke
[mm]		 Mounting length
(CCD) [mm]

(distance between
ends)		 Connection - foot dist.
(A) [mm]		 Connections
(B) [Metric]		 Connection piece height
(C) [mm]		 Sleeve inner Ø
(E) [mm]		 Sleeve outside Ø
(F) [mm]		 Foot thickness (G) [mm] Foot shoulder (H) [mm] Stop ring - rod end distance (I) [mm] Cap shoulder height (J) [mm] Cap length (K) [mm] Protruding rod length (L) [mm] Sleeve length
(LR) [mm]		 Rod length (LS) [mm] Reference
45 100 214 25 M18x1,5 18 55 65 10 2 10 35 35 22 147 202 V000450100SF
150 264 25 M18x1,5 18 55 65 10 2 10 35 35 22 197 252 V000450150SF
200 314 25 M18x1,5 18 55 65 10 2 10 35 35 22 247 302 V000450200SF
250 364 25 M18x1,5 18 55 65 10 2 10 35 35 22 297 352 V000450250SF
300 414 25 M18x1,5 18 55 65 10 2 10 35 35 22 347 402 V000450300SF
350 464 25 M18x1,5 18 55 65 10 2 10 35 35 22 397 452 V000450350SF
400 514 25 M18x1,5 18 55 65 10 2 10 35 35 22 447 502 V000450400SF
450 564 25 M18x1,5 18 55 65 10 2 10 35 35 22 497 552 V000450450SF
500 614 25 M18x1,5 18 55 65 10 2 10 35 35 22 547 602 V000450500SF
550 664 25 M18x1,5 18 55 65 10 2 10 35 35 22 597 652 V000450550SF
600 714 25 M18x1,5 18 55 65 10 2 10 35 35 22 647 702 V000450600SF
700 814 25 M18x1,5 18 55 65 10 2 10 35 35 22 747 802 V000450700SF
800 914 25 M18x1,5 18 55 65 10 2 10 35 35 22 847 902 V000450800SF
900 1014 25 M18x1,5 18 55 65 10 2 10 35 35 22 947 1002 V000450900SF
1000 1114 25 M18x1,5 18 55 65 10 2 10 35 35 22 1047 1102 V000451000SF
50 100 219 25 M18x1,5 18 60 70 10 2 10 40 35 22 152 207 V000500100SF
150 269 25 M18x1,5 18 60 70 10 2 10 40 35 22 202 257 V000500150SF
200 319 25 M18x1,5 18 60 70 10 2 10 40 35 22 252 307 V000500200SF
250 369 25 M18x1,5 18 60 70 10 2 10 40 35 22 302 357 V000500250SF
300 419 25 M18x1,5 18 60 70 10 2 10 40 35 22 352 407 V000500300SF
350 469 25 M18x1,5 18 60 70 10 2 10 40 35 22 402 457 V000500350SF
400 519 25 M18x1,5 18 60 70 10 2 10 40 35 22 452 507 V000500400SF
450 569 25 M18x1,5 18 60 70 10 2 10 40 35 22 502 557 V000500450SF
500 619 25 M18x1,5 18 60 70 10 2 10 40 35 22 552 607 V000500500SF
550 669 25 M18x1,5 18 60 70 10 2 10 40 35 22 602 657 V000500550SF
600 719 25 M18x1,5 18 60 70 10 2 10 40 35 22 652 707 V000500600SF
700 819 25 M18x1,5 18 60 70 10 2 10 40 35 22 752 807 V000500700SF
800 919 25 M18x1,5 18 60 70 10 2 10 40 35 22 852 907 V000500800SF
900 1019 25 M18x1,5 18 60 70 10 2 10 40 35 22 952 1007 V000500900SF
1000 1119 25 M18x1,5 18 60 70 10 2 10 40 35 22 1052 1107 V000501000SF
60 100 222 25 M18x1,5 18 70 80 10 2 10 40 35 25 152 210 V000600100SF
150 272 25 M18x1,5 18 70 80 10 2 10 40 35 25 202 260 V000600150SF
200 322 25 M18x1,5 18 70 80 10 2 10 40 35 25 252 310 V000600200SF
250 372 25 M18x1,5 18 70 80 10 2 10 40 35 25 302 360 V000600250SF
300 422 25 M18x1,5 18 70 80 10 2 10 40 35 25 352 410 V000600300SF
350 472 25 M18x1,5 18 70 80 10 2 10 40 35 25 402 460 V000600350SF
400 522 25 M18x1,5 18 70 80 10 2 10 40 35 25 452 510 V000600400SF
450 572 25 M18x1,5 18 70 80 10 2 10 40 35 25 502 560 V000600450SF
500 622 25 M18x1,5 18 70 80 10 2 10 40 35 25 552 610 V000600500SF
550 672 25 M18x1,5 18 70 80 10 2 10 40 35 25 602 660 V000600550SF
600 722 25 M18x1,5 18 70 80 10 2 10 40 35 25 652 710 V000600600SF
700 822 25 M18x1,5 18 70 80 10 2 10 40 35 25 752 810 V000600700SF
800 922 25 M18x1,5 18 70 80 10 2 10 40 35 25 852 910 V000600800SF
900 1022 25 M18x1,5 18 70 80 10 2 10 40 35 25 952 1010 V000600900SF
1000 1122 25 M18x1,5 18 70 80 10 2 10 40 35 25 1052 1110 V000601000SF
