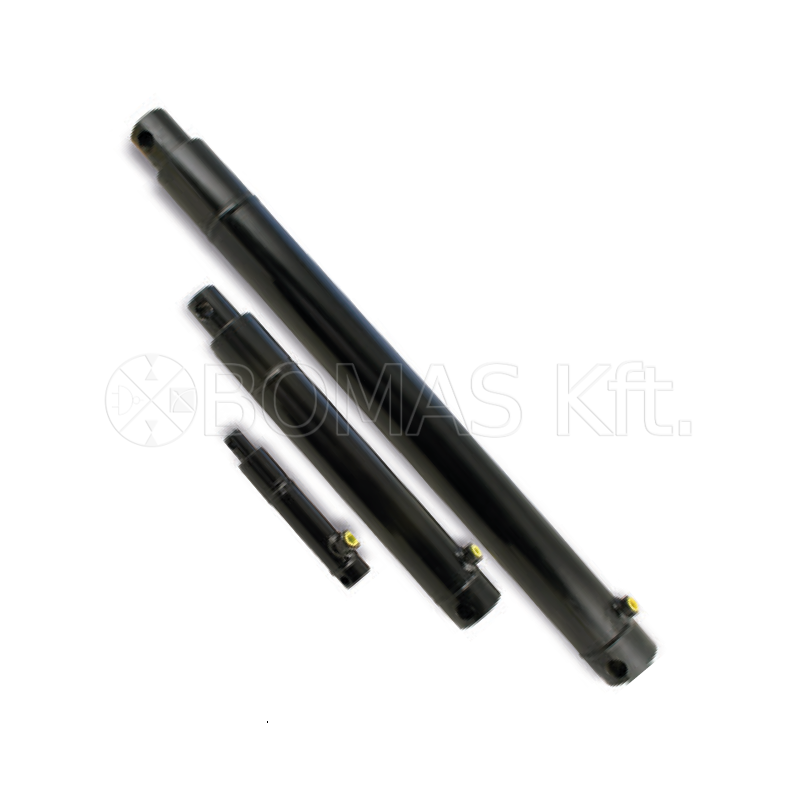

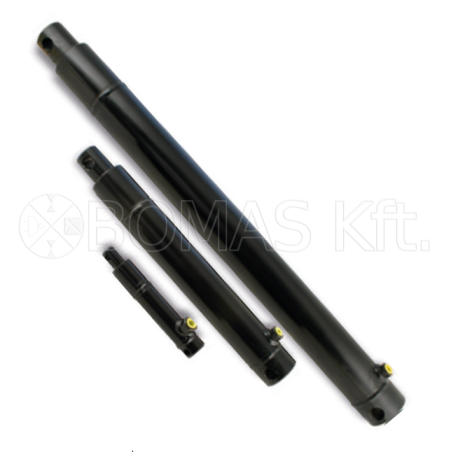

SINGLE ACTING CYLINDERS WITH BORE

Specifications:
- Working pressure: 200 Bar
- Test pressure: 300 bar
- Max. speed 0,5 m/s
- For mineral hydraulic oil
- Sealing type: Polyurethane lip seal + additional dust seal
- Black primer painted RAL 9005
- Size tolerances: +/-2mm and +/-2° bore tolerance: H12

Rod Ø (M) [mm]	Stroke [mm]	Mounting length (C) [mm] (distance between mounting bores)	Mounting bore diameter (D) [mm]	Connection (H) [BSP "]	Neck length (L) [mm]	Sleeve outside Ø (M) [mm]	Max. outside Ø (M1) [mm]	Connection - mounting bore dist. (N1) [mm]	Foot - bore distance (R) [mm]	Foot Ø (U) [mm]	Rod end - bore distance (W) [mm]	Lifting power at 200 bar [daN]	Weight [kg]	Reference
20	100	178	10,2	1/4	20	32	40	30	9	32	10	628	1	BV000200100JF
	200	278	10,2	1/4	20	32	40	30	9	32	10	628	1,5	BV000200200JF
	300	378	10,2	1/4	20	32	40	30	9	32	10	628	2	BV000200300JF
30	100	204	15,2	1/4	25	49	50	35	14	50	15	1414	2	BV000300100JF
	200	304	15,2	1/4	25	49	50	35	14	50	15	1414	3	BV000300200JF
	300	404	15,2	1/4	25	49	50	35	14	50	15	1414	4	BV000300300JF
	400	504	15,2	1/4	25	49	50	35	14	50	15	1414	5	BV000300400JF
	500	604	15,2	1/4	25	49	50	35	14	50	15	1414	6	BV000300500JF
	600	704	15,2	1/4	25	49	50	35	14	50	15	1414	7	BV000300600JF
	700	804	15,2	1/4	25	49	50	35	14	50	15	1414	8	BV000300700JF
40	200	332	20,4	1/4	32	59	60	40	18	60	20	2512	6,6	BV000400200JF
	300	432	20,4	1/4	32	59	60	40	18	60	20	2512	7	BV000400300JF
	400	532	20,4	1/4	32	59	60	40	18	60	20	2512	9	BV000400400JF
	500	632	20,4	1/4	32	59	60	40	18	60	20	2512	10	BV000400500JF
	600	732	20,4	1/4	32	59	60	40	18	60	20	2512	11,5	BV000400600JF
	700	832	20,4	1/4	32	59	60	40	18	60	20	2512	13	BV000400700JF
	1000	1132	20,4	1/4	32	59	60	40	18	60	20	2512	18	BV000401000JF
50	200	361	25,4	3/8	40	69	70	45	22	70	25	3926	9	BV000500200JF
	300	461	25,4	3/8	40	69	70	45	22	70	25	3926	11,5	BV000500300JF
	400	561	25,4	3/8	40	69	70	45	22	70	25	3926	14	BV000500400JF
	550	711	25,4	3/8	40	69	70	45	22	70	25	3926	17	BV000500550JF
	700	861	25,4	3/8	40	69	70	45	22	70	25	3926	21	BV000500700JF
	1000	1161	25,4	3/8	40	69	70	45	22	70	25	3926	27	BV000501000JF
60	300	478	25,4	3/8	40	80	80	45	22	80	25	5654	16,5	BV000600300JF
	400	578	25,4	3/8	40	80	80	45	22	80	25	5654	20	BV000600400JF
	550	728	25,4	3/8	40	80	80	45	22	80	25	5654	24	BV000600550JF
	700	878	25,4	3/8	40	80	80	45	22	80	25	5654	29	BV000600700JF
70	300	509	30,4	3/8	50	90	94	50	27	90	30	7696	22	BV000700300JF
	400	609	30,4	3/8	50	90	94	50	27	90	30	7696	26	BV000700400JF
	500	709	30,4	3/8	50	90	94	50	27	90	30	7698	30,5	BV000700500JF
	600	809	30,4	3/8	50	90	94	50	27	90	30	7696	34,5	BV000700600JF
80	200	425	30,4	3/8	50	100	105	57	27	100	30	10052	24,5	BV000800200JF
80	400	625	30,4	3/8	50	100	105	57	27	100	30	10052	35	BV000800400JF
