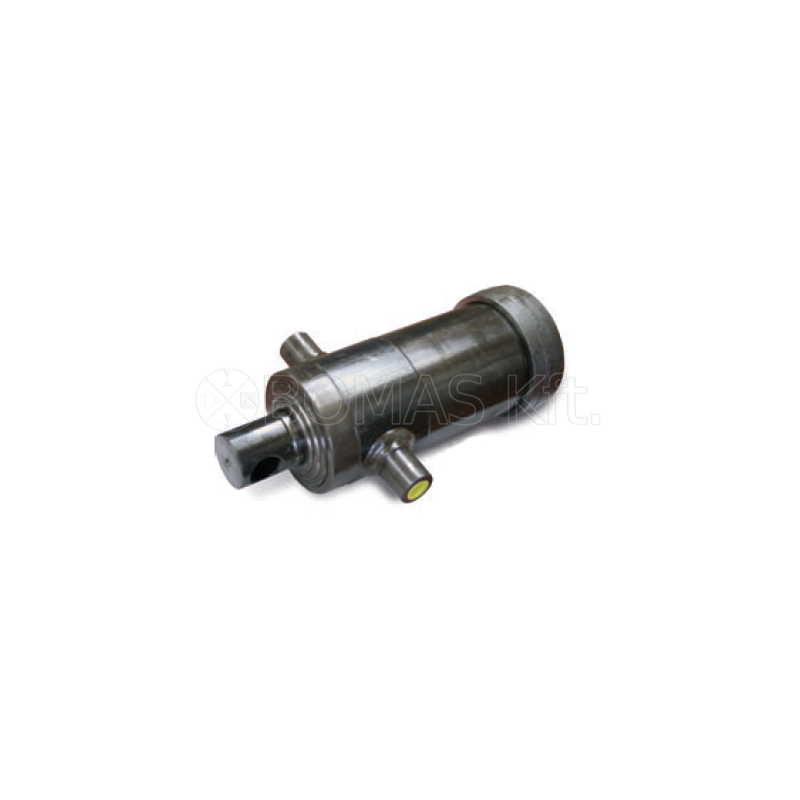

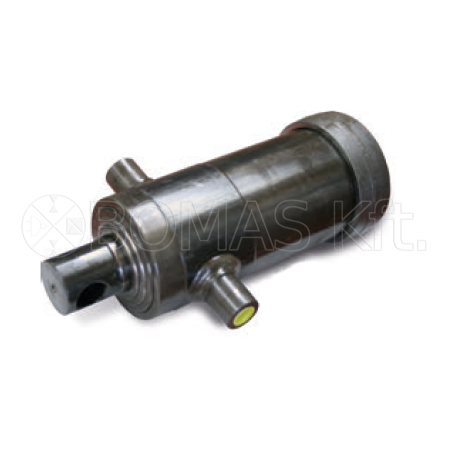

Side mount S-Acting Telescopic Cylinders

With trunnion mounts and bored rod

Product customization

Don't forget to save your customization to be able to add to cart
  • 250 char. max
Quantity
Available to order

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

SINGLE-ACTING TELESCOPIC CYLINDERS WITH
TRUNNION MOUNTS AND BORED ROD

Preferences:
- Wide range: many references with quick delivery
- Interchangeable with other brands.
- Easy adaptation with numerous fixing options.
- Easy maintenance, screwed head.

Hydraulic connectors

- One side fits the swivel rod of the cylinder (see two types, marked "1" and "2" in both tables), the other end can be chosen from the table.
- Parachute valve: In case of a hose rupture the parachute valve slows down the cylinder retraction, ensuring a slower descent of the load.

Size and type of connector Parachute valve Reference
1 Smooth polished tube, 17 mm
(for welded fitting)		 None BRT17D
1 Male DIN 15L None BRT15LD1
1 Female BSP ½" Built-in BCBMF181A012G
2 Male DIN 15L None BRT15LD
2 Female BSP ½" Built-in BCBMF221A012G

Telescopes

Reference Mounting length [mm] Section ∅ [mm] Stroke [mm] Force @180bar [t] Rod end bore ∅ (A) [mm] Swivel ∅ (B) [mm] Bearing distance (C) [mm] Width of swivel rod (D) [mm] Rod end ∅ (T) [mm] Bottom cap ∅ (E) [mm] Length (L) [mm] Swiveling radius (R) [mm] Sleeve outside ∅ (G) [mm] Neck length (F) [mm] Rod end – bore distance (F') [mm] Volume [liter] Type of swivel connector (see table)
1 2 3 4 5 6
BV20610525HD 100 46 61         525 3,5 26 35 105 40 44 95 375 280 80 27 25 1,3 1
BV30760593HD 102 46 61 76       593 5,0 26 35 115 40 44 110 312 220 95 32 25 2,0 1
BV20610595HD 100 46 61         595 3,5 26 35 105 40 44 95 412 315 80 27 25 1,5 1
BV20760595HD 105 61 76         595 5,5 31 35 115 40 59 110 415 315 95 32 30 2,3 1
BV41070670HD 112 61 76 91 107     670 10,0 31 40 150 40 59 144 297 200 124 32 30 4,0 1
BV20760695HD 105 61 76         695 5,5 31 35 115 40 59 110 465 365 95 32 30 2,7 1
BV20880695HD 115 68 88         695 9,0 36 35 130 40 66 122 480 370 106 42 30 3,5 1
BV20610795HD 100 46 61         795 3,5 26 35 105 40 44 95 510 413 80 27 25 2,0 1
BV20760795HD 105 61 76         795 5,5 31 35 115 40 59 110 515 415 95 32 30 3,0 1
BV20880795HD 115 68 88         795 9,0 36 35 130 40 66 122 530 420 106 32 30 4,0 1
BV30760893HD 102 46 61 76       893 5,0 26 35 115 40 44 110 412 315 95 32 25 2,8 1
BV30910893HD 107 61 76 91       893 8,0 31 35 135 40 59 128 422 325 112 32 30 4,2 1
BV31070893HD 117 68 88 107       893 11,0 36 40 150 40 66 144 432 325 124 42 30 5,7 1
BV20880895HD 115 68 88         895 9,0 36 35 130 40 66 122 580 470 106 32 30 4,5 1
BV21070895HD 115 88 107         895 13,0 36 40 150 40 86 144 580 472 124 42 30 6,8 1
BV41261040HD 130 68 88 107 126     1040 14,0 36 45 175 45 66 172 408 295 152 42 30 8,3 1
BV30911043HD 107 61 76 91       1043 8,0 31 35 135 40 59 128 472 375 112 32 30 5,0 1
BV31071043HD 117 68 88 107       1043 11,0 36 40 150 40 66 144 482 372 124 42 30 6,6 1
BV21071095HD 115 88 107         1095 13,0 36 40 150 40 86 144 680 570 124 42 30 8,3 1
BV21071195HD 115 88 107         1195 13,0 36 40 150 40 86 144 760 650 124 42 30 10,0 1
BV31261273HD 125 88 107 126       1273 16,0 36 45 175 45 86 172 570 455 152 42 30 12,0 1
BV30761283HD 102 46 61 76       1283 5,0 26 35 115 40 44 110 315 445 95 32 25 4,0 1
BV31071283HD 117 68 88 107       1283 11,0 36 40 150 40 66 144 562 450 124 42 30 8,2 1
BV41071290HD 112 61 76 91 107     1290 10,0 31 40 150 40 59 144 452 350 124 32 30 7,5 1
BV21071395HD 115 88 107         1395 13,0 36 40 150 40 86 144 860 750 124 42 30 11,6 1
BV51261480HD 120 61 76 91 107 126   1480 11,0 31 45 175 45 59 172 435 330 152 30 32 11,0 1
BV31261483HD 125 88 107 126       1483 16,0 36 45 175 45 86 172 640 525 152 42 30 13,8 1
BV41451490HD 200 88 107 126 145     1490 20,0 36 50 210 45 86 205 520 335 170 42 30 16,8 2
BV41261500HD 130 68 88 107 126     1500 14,0 36 45 175 45 66 172 525 405 152 42 30 12,0 1
BV41071510HD 112 61 76 91 107     1510 10,0 31 40 150 40 59 144 507 405 124 32 30 8,8 1
BV41651670HD 212 107 126 145 165     1670 25,0 46 50 230 45 105 220 587 390 190 52 35 25,6 2
BV41451690HD 200 88 107 126 145     1690 20,0 36 50 210 45 86 205 570 385 170 42 30 19,0 2
BV41261700HD 130 68 88 107 126     1700 14,0 36 45 175 45 66 172 575 455 152 42 30 13,5 1
BV51651850HD 205 88 107 126 145 165   1850 22,0 36 50 230 45 86 220 525 340 190 42 30 25,0 2
BV41651950HD 212 107 126 145 165     1950 25,0 46 50 230 45 105 220 657 460 190 52 35 29,7 2
BV41451970HD 200 88 107 126 145     1970 20,0 36 50 210 45 86 205 640 450 170 42 30 22,2 2
BV41261980HD 130 68 88 107 126     1980 14,0 36 45 175 45 66 172 645 523 152 42 30 15,6 1
BV51652100HD 205 88 107 126 145 165   2100 22,0 36 50 230 45 86 220 575 390 190 42 30 28,2 2
BV41452120HD 203 88 107 126 145     2190 20,0 36 50 210 45 86 200 723 528 169 36 30 27,0 2
BV41652190HD 202 107 126 145 165     2190 25,0 46 50 230 45 105 220 737 545 190 52 35 33,0 2
BV51652450HD 205 88 107 126 145 165   2450 22,0 36 50 230 45 86 220 655 460 190 42 30 32,8 2
BV41452510HD 200 88 107 126 145     2510 20,0 36 50 210 45 86 205 800 610 170 42 30 30,0 2
BV41652510HD 212 107 126 145 165     2510 25,0 46 50 230 45 105 220 817 615 190 52 35 40,0 2
BV51452990HD 205 68 88 107 126 145   2990 16,0 36 50 210 45 66 205 775 580 170 42 30 29,0 2
BV51652990HD 205 88 107 126 145 165   2990 22,0 36 50 230 45 86 220 775 580 190 42 30 40,0 2
BV61653585HD 208 68 88 107 126 145 165 3585 20,0 36 50 230 45 66 220 783 585 190 42 30 42,0 2

Nominal working pressure: 180 bar
