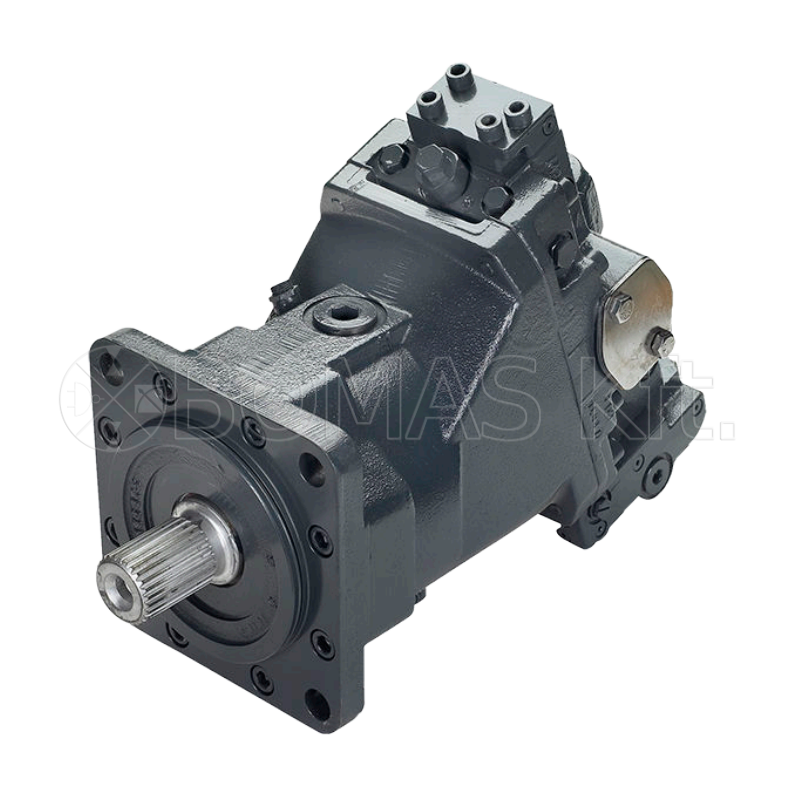

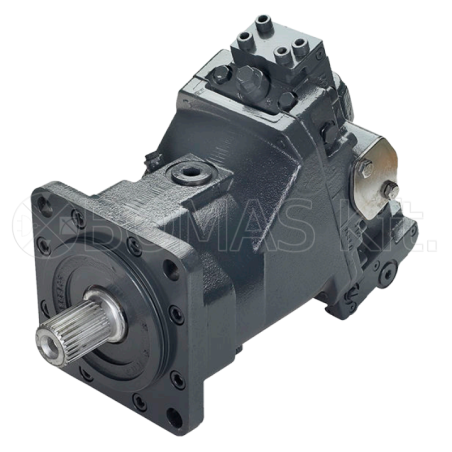

Danfoss Series 51 Axial Piston Hydromotors
Well proven, high power regulated displacement hydraulic motors of bent-axis design.
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
Well proven product family among the Danfoss high power axial piston motors.
- Designed with high power closed circuit drives in mind (but applicable in open circuit as well)
- For new, OEM projects we recommend it's successor product: Series H1B
Properties:
- Popular pump family used by the most powerful machinery brands
- Capacity: regulated, max. displacements: 60, 80, 110, 160 or 250 cm3
- Control options include 2-position, prop. and self-controlling versions
- Control input signals can be hydraulic or electric
- Speed sensor available
- Different shaft options
- Different hydraulic port options and directions
- Additional options in the Technical Information catalog below
- Good serviceability, with quick delivery of spare parts (in many cases from our stock!)
Application examples:
- Propulsion systems in construction-, agricultural-, forestry and other mobile machinery
- High power shredders, crushers
- High power hydraulic winch drives
- Concrete pumps
- etc.
Danfoss Series 51 Axial Piston Hydromotors Technical Information
| Model of hydromotor | 51#060... | 51#080... | 51#110... | 51#160... | 51#250... |
|---|---|---|---|---|---|
| Mounting flange | SAE / DIN / cartridge | SAE | |||
| Hydraulic size [cm3/rev] |
60.0 | 80.7 | 109.9 | 160.9 | 250.0 |
| Corner Power (theoretical) [kW] |
336 | 403 | 492 | 644 | 850 |
| Rated speed (max. - min. angle) [rpm] |
3600 - 5600 | 3100 - 5000 | 2800 - 4500 | 2500 - 4000 | 2200 - 3400 |
| Max. allowable speed (max. - min. angle) [rpm] |
4400 - 7000 | 4000 - 6250 | 3600 - 5600 | 3200 - 5000 | 2700 - 4250 |
| Max. intermittent pressure [bar] |
480 | 480 | 480 | 480 | 480 |
| Rated pressure [bar] |
510 | 510 | 510 | 510 | 510 |
| Min. pressure in return line [bar] |
10 | 10 | 10 | 10 | 10 |
| Theoretical torque (max. angle) [Nm/bar] |
0.95 - 0.19 | 1.28 - 0.26 | 1.75 - 0.35 | 2.56 - 0.51 | 3.98 - 0.80 |
