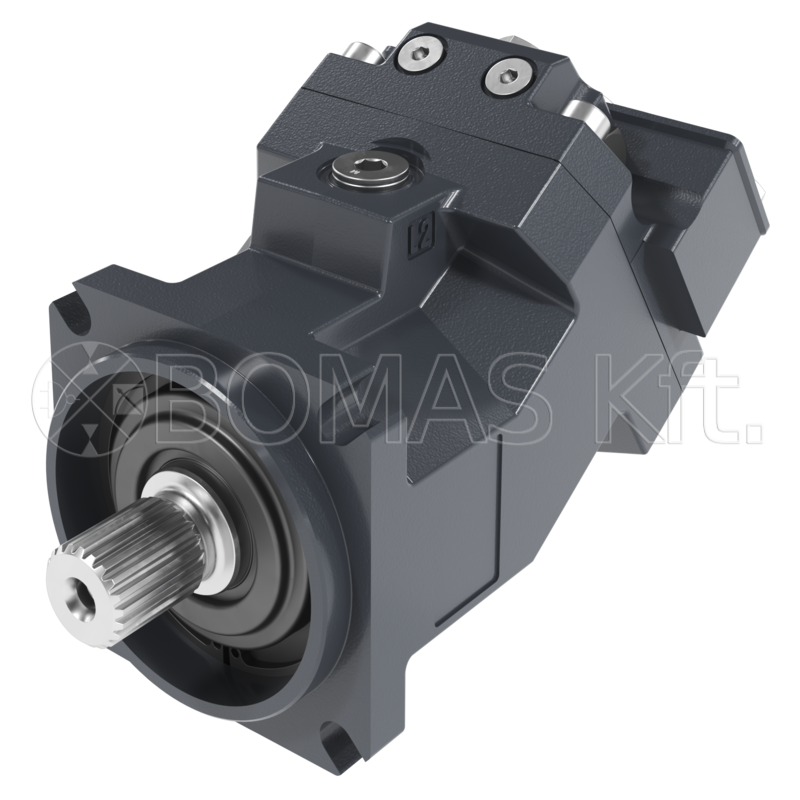

Danfoss Series H1F Axial Piston Hydromotors

Benefits:

- Proven H1 technology, building on the solid legacy of H1B bent-axis motors
- State of the art hydrostatic motor from Danfoss in axial piston bent-axis design.
- Up to 95% efficiency – leading to fuel savings, improved productivity, and reduced heat generation
- System pressure up to 510bar (abs), 480bar (delta)
- Can be used for open- and closed-circuit applications
- Our 80cc is the first frame size – many more to come, from 60cc to 250cc

Properties:

- Popular motor family used by the most powerful machinery brands
- Displacement: fixed displacement: 80cm3, with soon to be released 60 110, 160, 210 or 250 cm3 variants
- Speed sensor available
- Different shaft options
- Different hydraulic port options and directions
- Additional options in the Technical Information catalog below
- Good serviceability, with quick delivery of spare parts (in many cases from our stock!)

Key application examples:
- Agriculture
- Rollers
- Winches
- Drill Drives
- Fan Drives
- Forestry
- Track Drives

Danfoss H1F Axial Piston Hydromotors Technical Information
