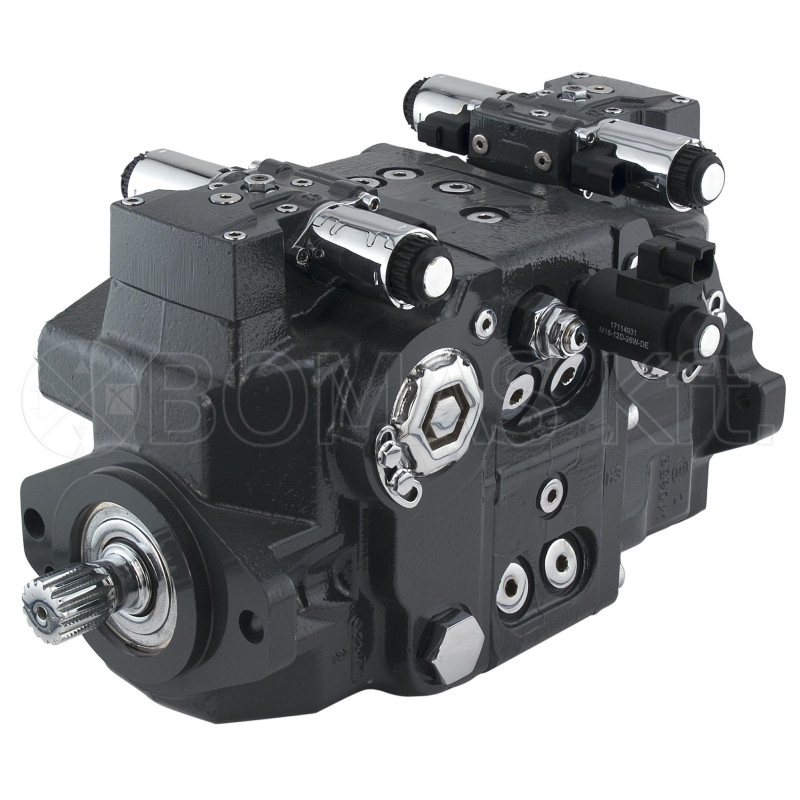

Danfoss Series H1P Axial Piston Pumps

Brand Danfoss

The heart of high power, high efficiency hydrostatic drives.

Product customization

Don't forget to save your customization to be able to add to cart

Quantity

Available to order

Product Tags

Danfoss Axial Piston Pump Hydrostatics Closed circuit High power H1 H1P H1T

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

Properties:
- Popular pump family used by the most powerful machinery brands
- Many different servo control options (mechanical, hydraulic, electric, automotive, etc.)
- Rated A-B differential pressures up to 450 bar
- 14 different hydraulic sizes between 45 and 250 cm3
- Different shaft options
- Available in single (H1P...) and tandem (H1T...) configuration
- Integrated charging-, filter system and energy-efficient high-pressure protection
- Auxiliary drive flanges for direct mounting of additional pumps
- Different hydraulic port options
- Good serviceability, with quick delivery of spare parts

Application examples:
- Propulsion systems in construction-, agricultural-, forestry and other mobile machinery
- High power shredders, crushers
- High power hydraulic winch drives
- Concrete pumps
- etc.

Danfoss Technical Information

Pump model	H1P045 (H1T045)	H1P053 (H1T045)	H1P060	H1P068	H1P069	H1P078	H1P089	H1P100	H1P115	H1P130	H1P147	H1P165	H1P210	H1P250	H1P280
SAE mounting flange	B2		C4		C4		C4		D4		D4		E4
Size [cm³/rev.]	45.0 (2x45.0)	53.8 (2x53.8)	60.4	68.0	69.2	78.1	89.2	101.7	115.2	130.0	147.2	165.1	211.5	251.7	280.2
Theoretical flow on rated speed [l/min]	153.0 (2x153.0)	182.9 (2x182.9)	211.4	238.0	242.2	273.4	294.4	335.6	368.6	416.0	441.6	495.3	549.9	654.4	728
Rated speed [1/min]	3400		3500		3500		3300		3200		3000		2600
Min. speed [1/min]	500		500		500		500		500		500		500
Nominal pressure A-B [bar]	420	380	420	380	450		450		450		450		450		420
Intermittent pressure A-B [bar]	450	400	450	400	480		480		480		480		480		450
