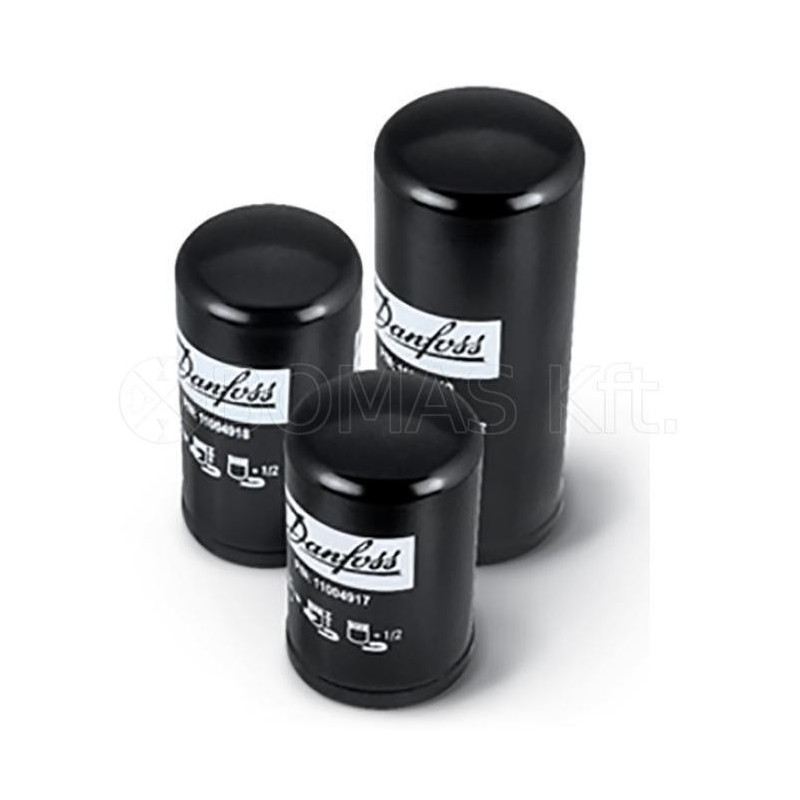

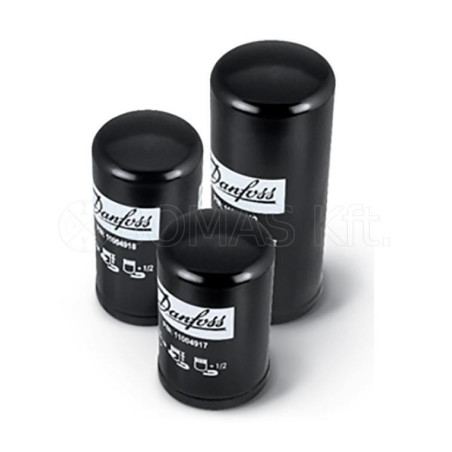

Danfoss Genuine Filter Cartridges

Brand Danfoss

Best choice for Danfoss pumps

Length [mm]

153
181
239.6

Quantity

Available to order

Product Tags

Danfoss Cartridge Filter

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

By using genuine Danfoss filter cartridges, you can always make sure you have chosen the right filter for your Danfoss HST units.

In case of a pump repair at Bomas Kft., if the Danfoss unit was brought to our workshop including the filter head, at the end of the repair, we supply you with a new genuine Danfoss filter cartridge.

Installation of Danfoss filter cartridges:

1. Lubricate the filter seal and install a new filter (T150).

2. Use a 24mm wrench to hold plug (T015) in place and install

the replacement filter.

3. Hand tighten the filter till it contacts the O-ring, the tighten it

½ turn to achieve proper installation torque.

Danfoss Technical Information

Danfoss part no.	11004917	11004918	11004919
Outer diameter [mm]	97	97	97
Thread	1.375 - 12 UNF - 2B	1.375 - 12 UNF - 2B	1.375 - 12 UNF - 2B
Length [mm]	153	181	239.6
Max. pressure	≥20 bar collapse resistance at max. flow rate (Direction of flow: Input - outer ring; output - inner terminal)
Max. flow rate [l/min]	60	80	105
Retained dirt capacity (at Δp max.)	30g	40g	60g
