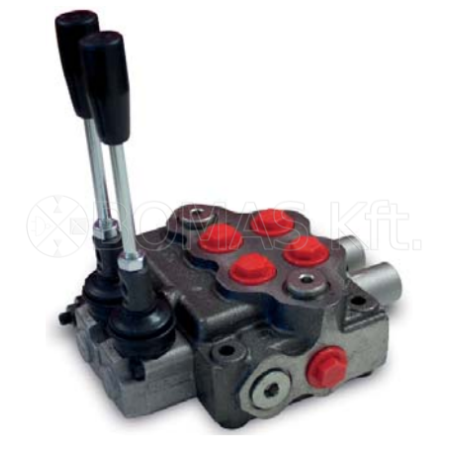

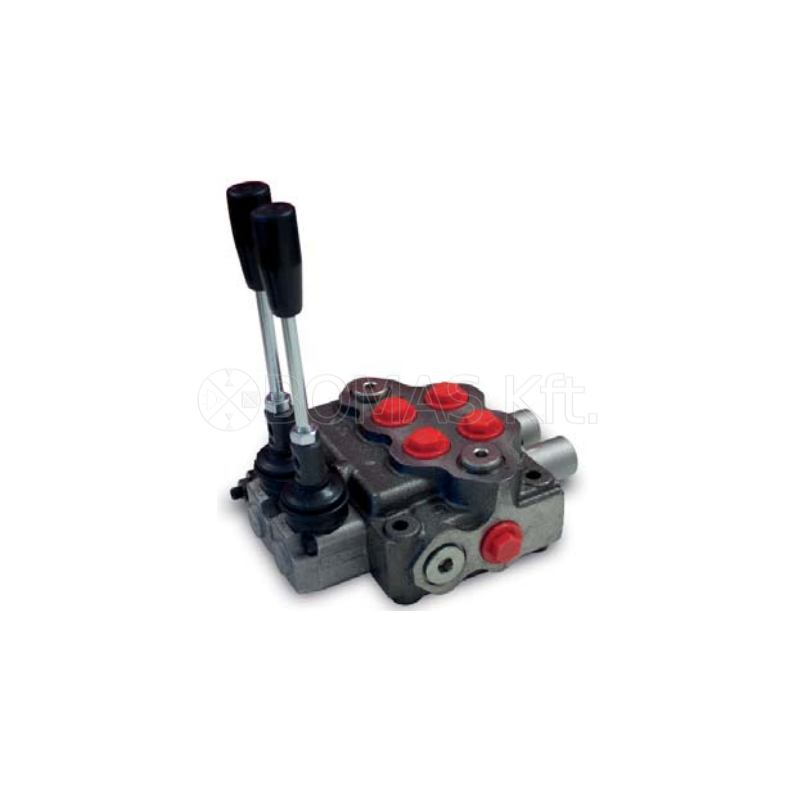

Monoblock Spool Valves - Multiple spools
45 l/min
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
MONOBLOCK SPOOL VALVES BDMO045 SERIES - 45 L/MIN - 2-7 SECTION
Application:
- Adaptable on open circuit or carry over.
- Number of section: 2 to 7.
- Max. flow rate: 45 l/min.
- Max. working pressure: 315 bar
- Adjustable pressure relief valve: 50 to 200 bar (other ranges possible).
- Ambient air temperature: -40°C to +60°C.
- Oil temperature: -20°C to +80°C.
- Mountings P, C, T, A and B = 3/8 BSP.
| Connection Type | Max. pressure (bar) | Single acting spool valve | Double acting spool valve | Reference | ||
| A and B closed | A and B towards T | + float position | ||||
| B | A | C | D* | |||
| Open circuit or carry over | 315 | 2 | BDMO045B2M | |||
| Open circuit or carry over | 315 | 2 | BDMO045A2M | |||
| Open circuit or carry over | 315 | 2 | BDMO045C2M | |||
| Open circuit or carry over | 315 | 1 | 1 | BDMO045ABM | ||
| Open circuit or carry over | 315 | 3 | BDMO045B3M | |||
| Open circuit or carry over | 315 | 3 | BDMO045A3M | |||
| Open circuit or carry over | 315 | 3 | BDMO045C3M | |||
| Open circuit or carry over | 315 |
1 |
2 | DMO045A2BM | ||
| Open circuit or carry over | 315 | 1 | 3 | DMO045A3BM | ||
| Open circuit or carry over | 315 | 1 | 3 |
1
|
DMO045A3BCM | |
| Open circuit or carry over | 315 | 1 | 1 | DMO045ADM | ||
| Open circuit or carry over | 315 | 2 | 1 | DMO045A2DM | ||
| Open circuit or carry over | 315 | 3 | 1 | DMO045A3DM | ||
| * Attention: the casting is specific | ||||||
Direct hydraulic, pneumatic or electric control: on request.
