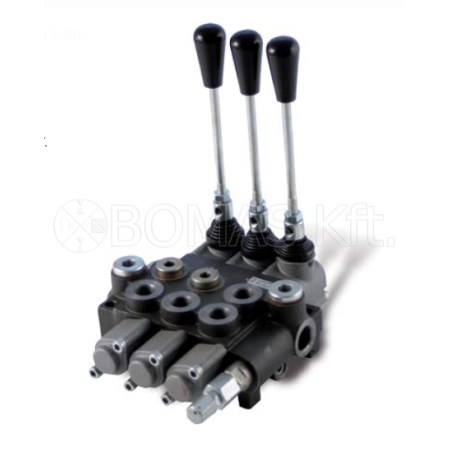

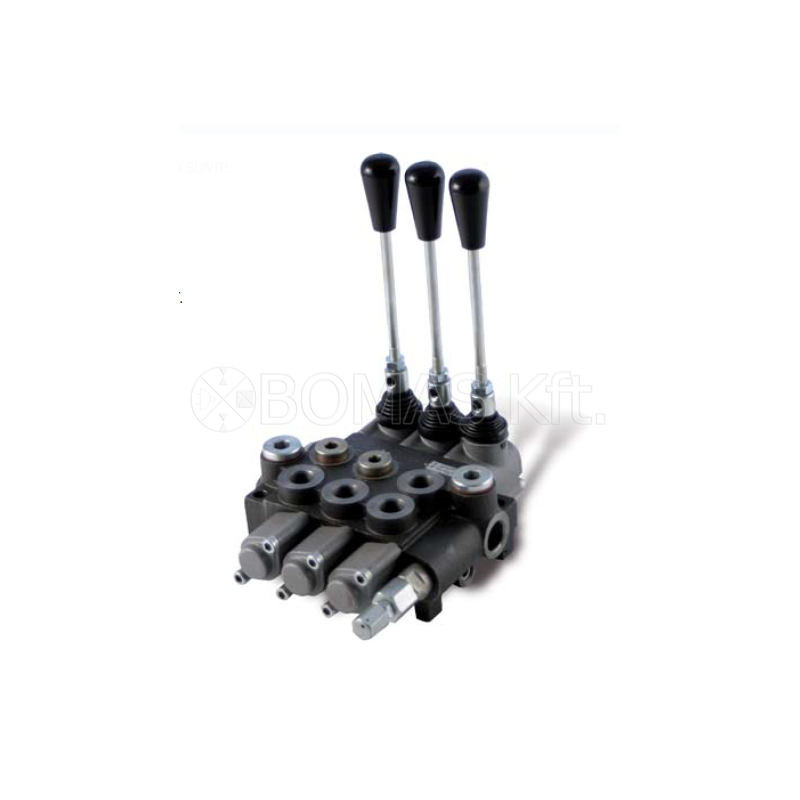

MANUAL MONOBLOCK SPOOL VALVES - 80 L/MIN

Application:
- Adaptable on open circuit, closed circuit, and carry-over line.
- Number of sections: 1 to 6.
- Max. flow rate: 80 l/min.
- Max. working pressure: 250 bar.
- Adjustable pressure relief valve: 50 to 250 bar.
- Ambient air temperature: -40°C to +60°C.
- Oil temperature: -15°C to +80°C.
- Mountings T1, T2, T1, T2, N = 1/2 BSP, A and B = 1/2 BSP.
- Cap on P2, T2 and N provided.

Information on openings:
A B = receiver supply
P1 P2 = supply
T1 T2 = reservoir return
N = carry over

Single-acting spool valve	Double-acting spool valve A and B closed	Double-acting spool valve A and B toward T	Double-acting spool valve (float position)	Reference
Type B	Type A	Type C	Type D*	Reference
1	-	-	-	BDM081BM
-	1	-	-	BDM081AM
-	2	-	-	BDM081A2M
-	3	-	-	BDM081A3M
-	4	-	-	BDM081A4M
-	5	-	-	BDM081A5M
-	6	-	-	BDM081A6M
1	1	-	-	BDM081ABM
1	2	-	-	BDM081A2BM
-	1	1	-	BDM081CAM
-	1	-	1	BDM081ADM
