Description
Product Details

Description

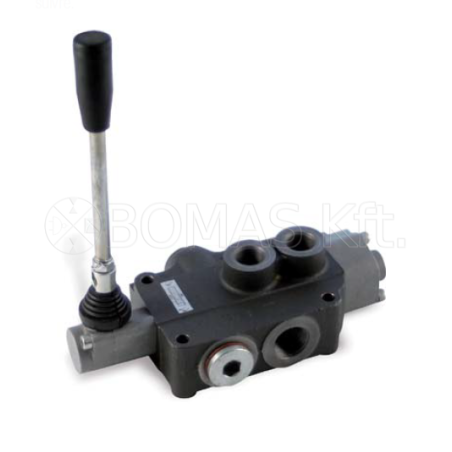

MONOBLOCK SPOOL VALVES DM041 SERIES - 40 L/MIN

Specifications

- Adaptable on open circuit, closed circuit, and carry-over line.
- Number of sections: 1 to 7.
- Max. flow rate: 40 l/min.
- Max. working pressure: 250 bar.
- Adjustable pressure relief valve: 50 to 250 bar.
- Ambient air temperature: -40°C to +60°C.
- Oil temperature: -15°C to +80°C.
- Mountings P1, P2, T1, T2, N = 1⁄2 BSP, A and B = 3/8 BSP.
- Cap on P2, T2 and N provided.

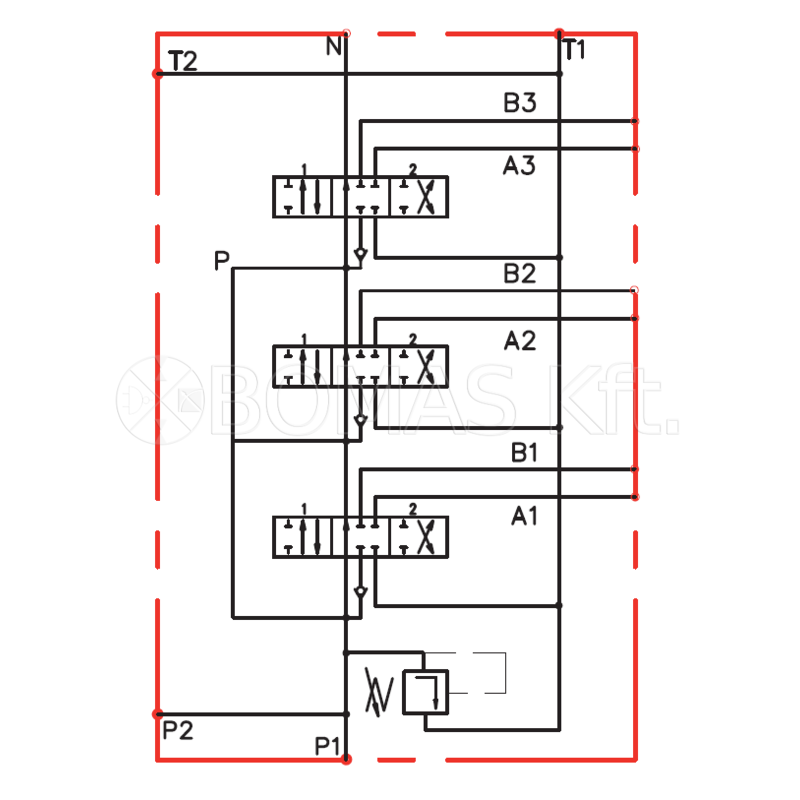

Information on openings
A B = receiver supply
P1 P2 = supply
T1 T2 = reservoir return
N = carry over

Number of sections	1	2	3	4	5	6	7
Dimensions C	85	129	164	199	234	269	304
Dimensions D	60	97	132	167	202	237	272
Dimensions in mm

Single-acting spool valve	Double-acting spool valve A and B closed	Double-acting spool valve A and B toward T	Double-acting spool valve (float position)	Reference
Type B	Type A	Type C	Type D*	Reference
1	-	-	-	BDM041BM
-	1	-	-	BDM041AM
1	1	-	-	BDM041ABM
1	2	-	-	BDM041A2BM
1	3	-	-	BDM041A3BM
1	3	1	-	BDM041A3BCM
-	1	-	1	BDM041ADM
