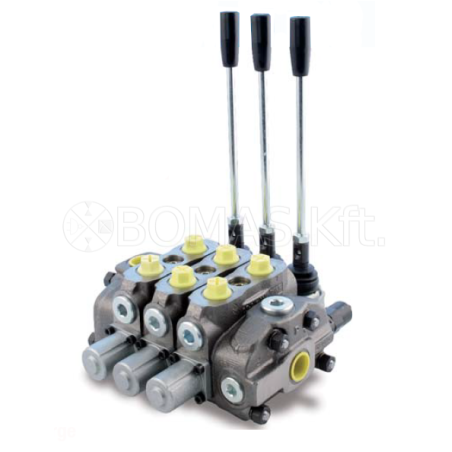

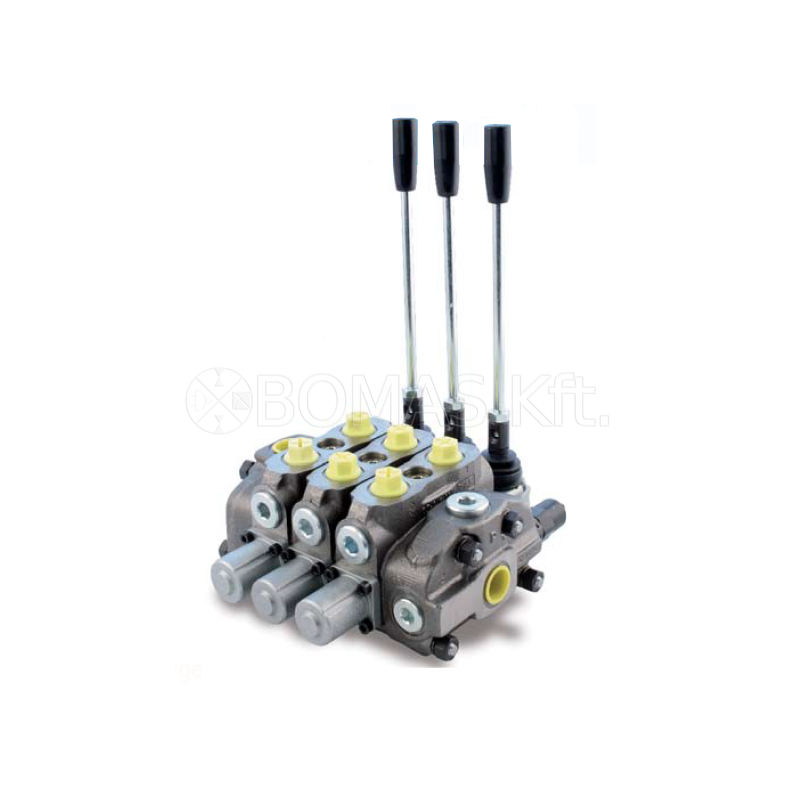

Stackable Spool Valves

90 l/min

Product customization

Don't forget to save your customization to be able to add to cart

Quantity

Available to order

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

STACKABLE SPOOL VALVES - 90 L/MIN

Specifications

- Adaptable on open circuit, closed circuit, and carry-over line.
- Nominal flow rate: 90 l/min.
- Adjustable pressure relief valve: 180 to 315 bar.
- Max. counter-pressure on the return: 25 bar.
- Internal leakage (A, B to T at 100 bar): 3 cm3/min.
- Diameter of the spool valve: 20 mm.
- Stroke of the spool valve: ± 7 mm.
- Mountings (never use conical unions):
P, CS, T : 3/4" BSP,
A, B : 1/2" BSP.

Number of sections	1	2	3	4	5	6
Dimensions E	154	199	244	289	334	379
Dimensions E	71	116	161	206	251	296
Dimensions in mm

Single- acting B	Double- acting A	Reference with manual control	Reference with hydraulic control
1	-	BDEO090B1M	BDEH090B1MCAC
-	1	BDEO090A1M	BDEH090A1MCAC
-	2	BDEO090A2M	BDEH090A2MCAC
-	3	BDEO090A3M	BDEH090A3MCAC
-	4	BDEO090A4M	BDEH090A4MCAC
-	5	BDEO090A5M	BDEH090A5MCAC
-	6	BDEO090A6M	BDEH090A6MCAC
