Stackable Spool Valves
140 L/MIN
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description

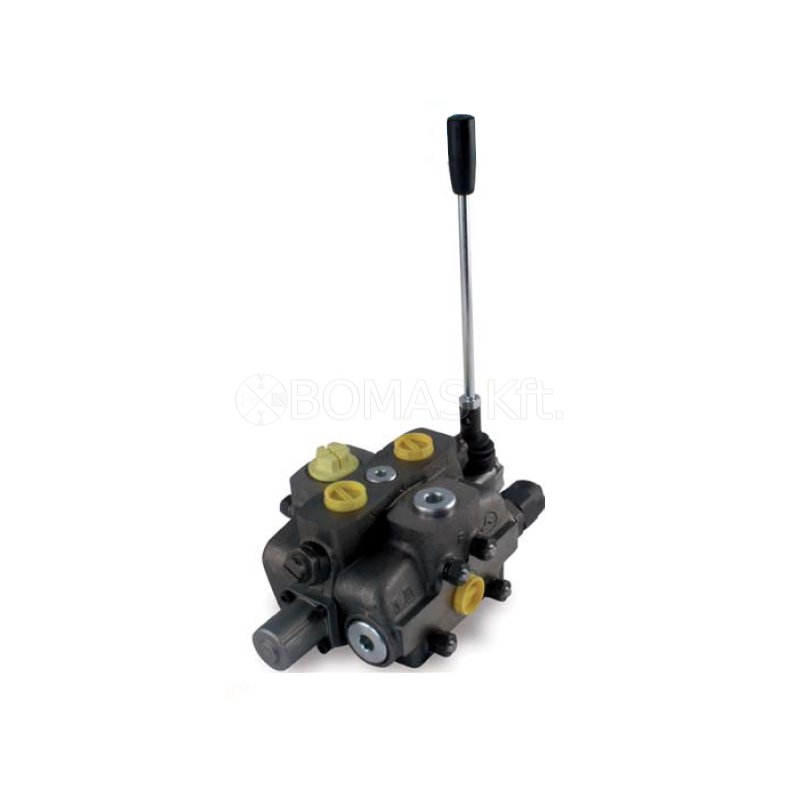

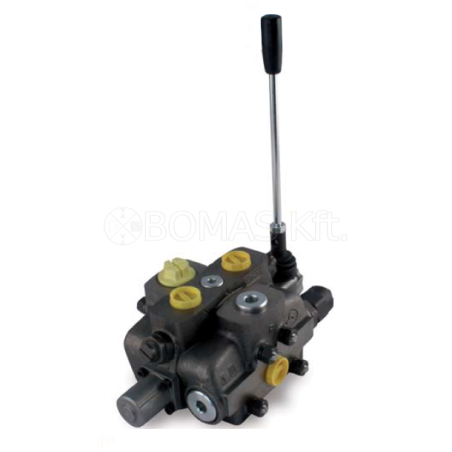

STACKABLE SPOOL VALVES - 140 L/MIN
Specifications
- Adaptable on open circuit, closed circuit, and carry-over line.
- Nominal flow rate: 140 l/min.
- Adjustable pressure relief valve: 180 to 315 bar.
- Max. counter-pressure on the return: 25 bar.
- Internal seepage (A, B, to T at 100 bar): 3 cm3/min.
- Diameter of the spool valve: 20 mm.
- Stroke of the spool valve: ± 7 mm.
P, A B : BSP 3/4"
T, CS : BSP 1".
| Number of sections | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Dimensions E | 176 | 224 | 272 | 320 | 368 | 416 |
| Dimensions E | 124 | 172 | 220 | 268 | 316 | 364 |
| Dimensions in mm | ||||||
| Single- acting B |
Double- acting A |
Reference with manual control |
Reference with hydraulic control |
| 1 | - | BDEO140B1M | BDEH140B1MCAC |
| - | 1 | BDEO140A1M | BDEH140A1MCAC |
| - | 2 | BDEO140A2M | BDEH140A2MCAC |
| - | 3 | BDEO140A3M | BDEH140A3MCAC |
| - | 4 | BDEO140A4M | BDEH140A4MCAC |
| - | 5 | BDEO140A5M | BDEH140A5MCAC |
| - | 6 | BDEO140A6M | BDEH140A6MCAC |
Many options are possible: hydraulic, pneumatic and electrohydraulic control, shock-proof valves, cross control joystick, etc.
For more information, please contact us.
